Solving the Blind Corner: Rayzeek Sensor Placement in L-Shaped Hallways

Horace He

Last Updated: November 24, 2025

A brightly lit and empty L-shaped hallway in a modern home with neutral beige walls, white baseboards, and light oak laminate flooring. The space is evenly illuminated by recessed ceiling lights.

You’ve likely seen this in a commercial building, or maybe even your own hallway. You walk out of a bedroom, hands full of laundry or groceries, into the dark. You take three steps toward the kitchen, expecting the motion sensor to catch you, but the hallway stays pitch black. You have to walk another ten feet, almost to the end of the hall, before the lights finally snap on. Or worse, you find yourself doing the “waving arms” dance in the dark, hoping to catch the sensor’s attention.

This is a geometry failure, not just a nuisance. It happens because someone treated an L-shaped hallway like a straight line. They swapped out an existing switch for a motion sensor, assumed the “180-degree field of view” on the box was magic, and called it a day. But physics doesn’t care about your convenience, and infrared heat signatures can’t bend around drywall. If the sensor can’t see you, the lights stay off. It’s that simple.

Why the L-Shape Defeats Standard PIR

To fix this, you have to understand what the sensor is actually doing. Most residential sensors, including the Rayzeek RZ series, use Passive Infrared (PIR) technology. They look for a heat differential moving across a Fresnel lens.

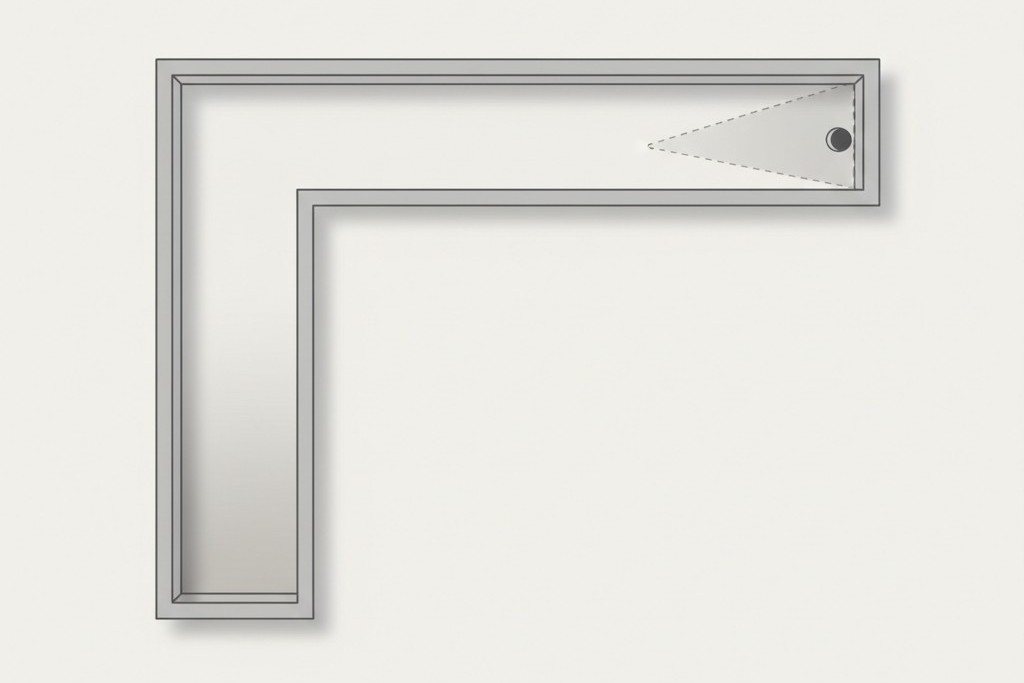

A top-down diagram of an L-shaped hallway. A motion sensor at one end casts a cone-shaped detection zone that only covers one leg, leaving the other leg in a blind spot.
The sensor’s limited field of view acts like a flashlight beam, leaving the other leg of the hallway in a ‘shadow’ where motion is not detected.

Think of the sensor like a flashlight beam. If you taped a flashlight to the switch box, where would the light hit? In an L-shaped hallway, usually with switch boxes at the far ends of the “legs,” that beam hits the opposite wall and stops. The other leg of the hallway stays in shadow.

There’s a misconception that these sensors work like radar or sonar, bouncing signals around corners. They don’t. (Ultrasonic sensors exist, mostly in commercial bathrooms, but they’re overkill for a house and prone to false triggers every time the HVAC kicks on). For a standard PIR switch, line-of-sight is non-negotiable. If you’re standing in the “shadow” of the corner—the area the lens physically can’t see—you don’t exist to the system.

This is also why “pet immunity” is such a headache in these layouts. People try to mask the bottom of the lens to avoid the cat triggering the lights at 3 AM, which further narrows the vertical detection cone. If you have bad horizontal placement and you tape off the bottom of the lens, you’ve effectively built a light switch that requires you to stand directly in front of it and wave.

So, how do you solve the blind corner? You have two options: a carpenter’s solution (moving the device) or an electrician’s solution (wiring a network).

Strategy 1: The Fulcrum Mount (The Carpenter’s Fix)

In many retrofits—specifically in older farmhouses or renovations where the layout is quirky—the existing switch boxes are in the worst possible spots, usually at the far ends of the hallway. If you install a sensor at the end of the hall, it only sees down one leg. The most robust fix is often to ignore the electrical boxes you have and cut in a new one where you actually need it.

A top-down diagram of an L-shaped hallway with a motion sensor placed on the ceiling at the outer corner, providing a clear line of sight down both legs of the hallway.
By mounting the sensor at the ‘fulcrum’ or outer corner, its wide-angle view can cover both legs of the L-shaped hallway, eliminating any blind spots.

We call this the Fulcrum Strategy. You identify the outer corner of the “L”—the vertex where the two hallways meet. If you place a wide-angle sensor (like the Rayzeek RZ021) on that corner, usually ceiling-mounted or high on the wall, it has a clear shot down both legs of the hallway. It’s the sniper’s perch of motion detection.

Maybe You Are Interested In

  • Occupancy (Auto-ON/Auto-OFF)
  • 12–24V DC (10–30VDC), up to 10A
  • 360° coverage, 8–12 m diameter
  • Time delay 15 s–30 min
  • Light sensor Off/15/25/35 Lux
  • High/Low sensitivity
  • Auto-ON/Auto-OFF occupancy mode
  • 100–265V AC, 10A (neutral required)
  • 360° coverage; 8–12 m detection diameter
  • Time delay 15 s–30 min; Lux OFF/15/25/35; Sensitivity High/Low
  • Auto-ON/Auto-OFF occupancy mode
  • 100–265V AC, 5A (neutral required)
  • 360° coverage; 8–12 m detection diameter
  • Time delay 15 s–30 min; Lux OFF/15/25/35; Sensitivity High/Low
  • 100V-230VAC
  • Transmission Distance: up to 20m
  • Wireless motion sensor
  • Hardwired control
  • Voltage: 2x AAA Batteries / 5V DC (Micro USB)
  • Day/Night Mode
  • Time delay: 15min, 30min, 1h(default), 2h
  • Voltage: 2 x AAA
  • Transmission Distance: 30 m
  • Time delay: 5s, 1m, 5m, 10m, 30m
  • Load Current: 10A Max
  • Auto/Sleep Mode
  • Time delay: 90s, 5min, 10min, 30min, 60min
  • Load Current: 10A Max
  • Auto/Sleep Mode
  • Time delay: 90s, 5min, 10min, 30min, 60min
  • Load Current: 10A Max
  • Auto/Sleep Mode
  • Time delay: 90s, 5min, 10min, 30min, 60min
  • Load Current: 10A Max
  • Auto/Sleep Mode
  • Time delay: 90s, 5min, 10min, 30min, 60min
  • Load Current: 10A Max
  • Auto/Sleep Mode
  • Time delay: 90s, 5min, 10min, 30min, 60min
  • Load Current: 10A Max
  • Auto/Sleep Mode
  • Time delay: 90s, 5min, 10min, 30min, 60min
  • Occupancy mode
  • 100V ~ 265V, 5A
  • Neutral Wire Required
  • 1600 sq ft
  • Voltage: DC 12v/24v
  • Mode: Auto/ON/OFF
  • Time Delay: 15s~900s
  • Dimming: 20%~100%
  • Occupancy, Vacancy, ON/OFF mode
  • 100~265V, 5A
  • Neutral Wire Required
  • Fits the UK Square backbox

This requires getting your hands dirty. You’ll need a “cut-in” or “old work” box (like the blue Carlon boxes with the flip-out wings), a drywall saw, and a fish tape. You pull the line voltage from one of the existing switch locations, snake it through the ceiling or attic, and drop it down to this new corner location. You then blank off the old switches or turn them into permanent power feeds.

It sounds like more work, but run the math on the callback cost. Spending an hour fishing a wire and patching a small square of drywall is cheaper than buying wireless battery-powered sensors that fail every six months, or coming back three times because the client is complaining about the lights not turning on. With the sensor at the fulcrum, the geometry problem is solved instantly. One device, 100% coverage, zero blind spots.

Strategy 2: The Wired 3-Way (The Electrician’s Fix)

If you can’t cut into the drywall—maybe it’s a condo with concrete walls or a high-end finish you can’t touch—you have to use the existing box locations. This means you need two sensors, one at each end of the L, working together. This is where most installations go wrong because people assume a motion sensor wires up exactly like a mechanical 3-way switch. It doesn’t.

In a standard mechanical 3-way, the switches toggle power back and forth along “traveler” wires. If you just swap those mechanical switches for sensors, you often end up with a system where one sensor kills power to the other, or they fight for control. The lights might strobe, or one end of the hall will work while the other is dead.

For Rayzeek units (and similar hardwired sensors), you typically wire them in parallel or use a specific “3-way” model that communicates via a traveler. The goal is that if either sensor triggers, the load (the light) gets power.

There is a massive point of confusion here for anyone who has just browsed a forum: don’t confuse “multi-location dimming” logic with motion sensor logic. You aren’t trying to dim the lights from both ends; you’re just trying to close the circuit.

Get Inspired by Rayzeek Motion Sensor Portfolios.

Doesn't find what you want? Don't worry. There are always alternate ways to solve your problems. Maybe one of our portfolios can help.

When you wire this, you usually tie the “Line” (hot) wire to both sensors. You tie the “Load” wire (the one going to the light) to the output of both sensors. This creates a logical “OR” gate: if Sensor A sees motion OR Sensor B sees motion, the light turns on.

Note: Always check the specific schematic for your model (e.g., RZ021 vs RZ023). Some newer models require a dedicated traveler wire for communication, and the color of that wire in the box can vary by batch—sometimes it’s yellow, sometimes it’s a striped red. Don’t guess.

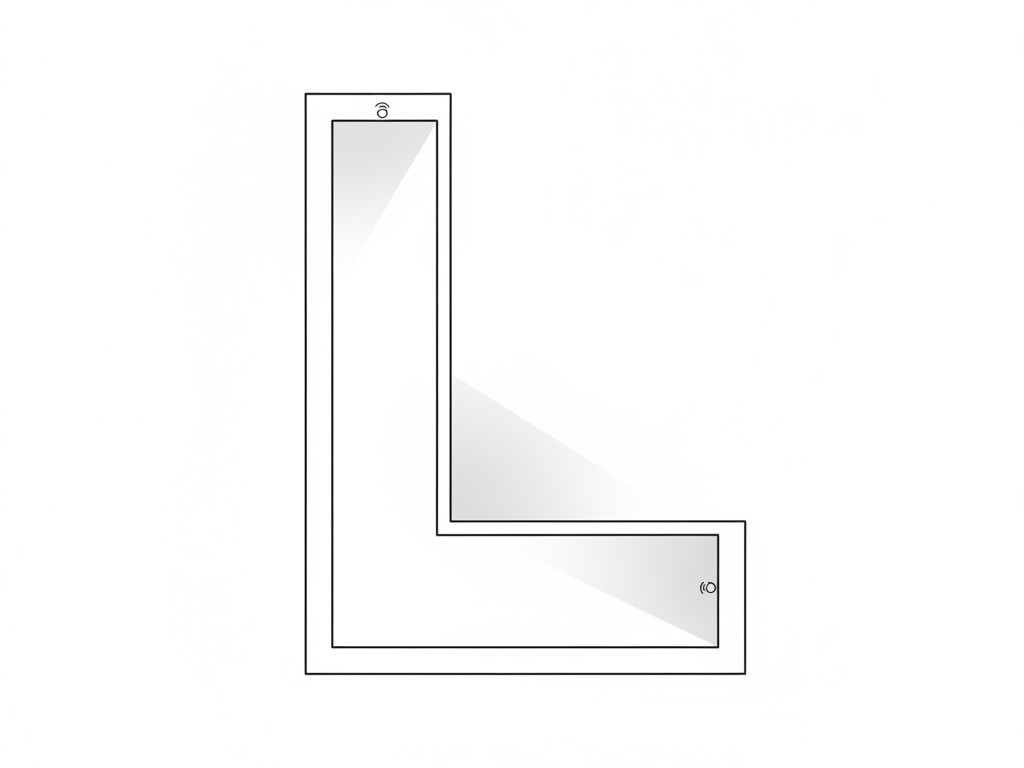

A top-down diagram of an L-shaped hallway showing two sensors, one at each end. Their detection zones are shown as overlapping cones, ensuring the entire hallway is covered.
