Product video
Air Conditioner Motion Sensor Controller
$27.00
Product highlights
- Smart PIR Motion Sensor: Automatically turns off your AC when vacant, with optional auto-ON upon room entry.
- Energy Saving: Acting as an advanced occupancy sensor, save energy bills up to 20% ~ 50%.
- Wireless & Battery-Powered: Easy DIY installation, no wiring required.
- Learns Your AC Remote: Learns required OFF and optional ON commands (compatible with discrete ON/OFF remote codes).
- Customizable Time Delay: Choose from 15min, 30min, 1h, or 2h settings.
- Intelligent Night Mode: Prevents accidental shut-off in the dark (< 1 Lux) while occupants sleep.
- Window/Door Sensor Option: Need window/door shut-off? Check our RZ050-DS model with magnetic contact sensors.
Not what you're looking for? View our portfolio:
Consult an Expert
Take Control of Your AC and Your Energy Bills with the RZ050

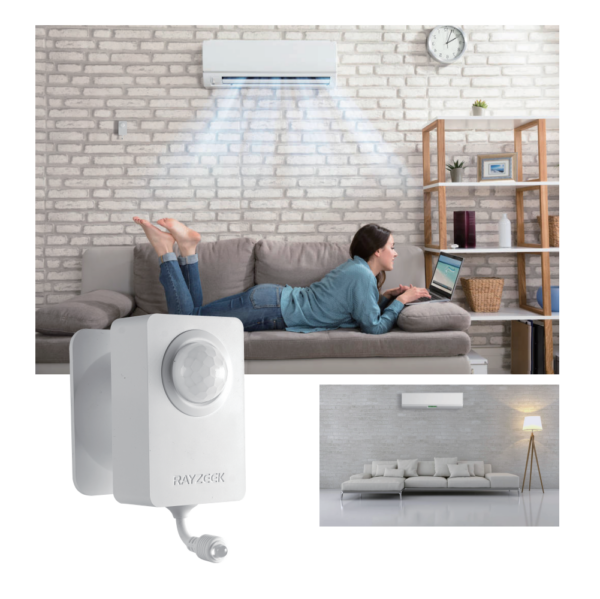

The RZ050 Air Conditioner Motion Sensor Controller is your solution to a more energy-efficient and comfortable home or business. This intelligent device uses a PIR motion sensor to detect room occupancy, automatically sending an “OFF” signal when the room is vacant, while supporting an optional learned “ON” signal to turn on the AC upon initial entry.
Easy to install, simple to use, and compatible with most split AC units, the RZ050 is the smart choice for anyone looking to save money and reduce their environmental impact.
Looking for Door & Window Sensors? Check the RZ050-DS Series
While the standard RZ050 operates as an independent PIR motion controller, our product family also offers door and window monitoring through the RZ050-DS series. The RZ050-DS model pairs wirelessly with magnetic contact sensors to automatically power off the AC whenever a door or window is left open.
If your rooms are frequently aired out or left with open windows, explore the RZ050-DS air conditioner controller to add magnetic contact sensors to your climate setup.
Smart Uses for Your RZ050: Dual-Setpoint Temperature Control & More
Beyond simply turning off your AC, the RZ050 offers smart dual-setpoint temperature control. By learning specific temperature commands from your AC remote, you can create a more nuanced approach to climate management.
Dual-Setpoint Temperature Regulation
With the RZ050’s learning capability, you can train it to switch between active and setback temperatures instead of shutting off power completely. For example, it can transmit a comfortable startup temperature (such as 21°C) when someone enters the room, and shift to an energy-saving setback temperature (such as 28°C) when the room is unoccupied, ensuring comfort while minimizing energy waste.
Ideal for Hotels, B&Bs, Vacation Rentals, Offices, and Homes
The RZ050 is a versatile solution for any environment where AC units are used. Hotels and B&Bs can significantly reduce energy costs by preventing guests from leaving ACs running in empty rooms. Offices can benefit from automated shut-off during off-hours or in unused meeting rooms. And homes can enjoy the convenience and savings of a smart AC system without the need for expensive replacements.
Features, Benefits, Specs
Features & Benefits
- Automatically turns off the air conditioner when the room is left empty, with optional automatic turn-ON upon room entry.
- Compatible with remote-controlled split AC units (requires discrete OFF code for shutoff; discrete ON & OFF for dual control).
- Intelligent Night Mode: Suppresses automatic shut-off when dark (<1Lux) to protect sleeping occupants, while preserving motion-activated turn-ON upon entry.
- Safe and Reliable: Operates via infrared commands without interfering with your AC’s internal wiring or warranty.
- Battery-Powered: Cordless operation with at least 1 year battery life using 2 standard AAA batteries.
- Wireless Design: Fast, easy DIY installation—simply mount with included adhesive tape or screws.
- Adjustable Time Delay: Select from 15min, 30min, 1h (default), or 2h vacancy countdowns (automatically clamps to 1h or 2h in Night Mode).
- Window/Door Sensor Option: Need opening sensors? Check our companion RZ050-DS model designed for door and window monitoring.
- Low Battery Indicator: Flashes red light 5 times to notify you when batteries need replacing.
- Motion Detection Light: Red lens detection indicator can be turned ON/OFF as desired.
- Features
-
Voltage
2.5V-3.5VDC(2 AAA batteries)
Time delay
options 15min, 30min, 1h(default), 2h.
Motion Detecting range
6-9M Max
IR transmitting range
<10M
IR Transmitting direction
30 degree
Mounting
Screwing or sticking on the wall
Supported commands
Learned IR OFF (required); learned IR ON or dual temperature setpoints (optional)
Size
45 x 70 x 64 mm
Indoor use only
Indoor use only, 0~40°C relative humidity： up to 90%
Comparison Table
|
RZ050
|
RZ050-DP
|
RZ050-DS
|
|
|---|---|---|---|
| Auto AC Control Modes |
|
|
|
| Window/Door Sensor Compatible |
|
|
|
| Power Supply |
|
|
|
Note : USB Power adaptor not included in the package, purchase here(Plug type: US, UK, EU).
FAQ
Will the RZ050 work with my AC unit?
The RZ050 is compatible with split AC units operated by infrared remotes with discrete commands. For vacancy shutoff only, a discrete OFF command is required. For dual turn-ON and turn-OFF control, the remote must have separate, discrete codes for ON and OFF. Remotes with a single toggle button for both power ON and OFF are not supported.
How do I install the RZ050 Air Conditioner Occupancy Sensor?
Installation is simple and requires no wiring. You can either stick the device to the wall using the included adhesive or mount it with screws. Detailed instructions are provided in the user manual.
How long does the battery last?
The RZ050 is designed for long battery life, typically lasting at least one year with normal use.
What is Night Mode?
Night Mode prevents the AC from turning off while you sleep. When ambient brightness is below 1Lux, the controller suppresses the automatic OFF command so sleeping occupants are not interrupted. Motion detection remains active and can still turn the AC ON upon room entry if the ON command has been learned.
Can I use the RZ050 to turn my AC ON?
Yes. In addition to the required OFF command, the RZ050 can learn an optional ON command (or startup temperature) from your AC remote. Upon the first motion detected when entering an unoccupied room, the RZ050 automatically transmits the learned ON signal to your AC. Note: To configure automatic turn-ON, the ON command must be learned immediately following the OFF command setup by holding the Mode button for 10 seconds. Re-learning an OFF command clears any previously stored ON command.
Why won’t the AC turn back on automatically after I turn it off with my remote?
The RZ050 operates open-loop without telemetry feedback from the AC. If you manually turn off the AC with your remote while staying in the room, the RZ050 still assumes the room is occupied and the AC is running. In this state, motion only resets the vacancy countdown. To restore automatic turn-ON, the space must remain vacant until the time delay expires and the RZ050 transmits its own OFF signal, or you can turn the AC back on manually with the remote.
What is the warranty on the RZ050?
The RZ050 comes with a 1-year limited warranty.
What if I have trouble with the RZ050?
Please refer to the troubleshooting guide in the user manual. If you still need assistance, contact our customer support at [email protected].
Can I use door and window sensors with the RZ050?
The standard RZ050 is an independent PIR motion controller and does not connect to external door sensors. If you need your AC to automatically shut down when doors or windows are left open, that capability is supported by another model in our series: the RZ050-DS Air Conditioner Controller, which pairs wirelessly with RZ001 magnetic contact sensors.
How does temperature-based control work instead of turning the AC completely off?
The RZ050 can learn specific temperature signals from your AC remote instead of power commands. It learns an active startup temperature (e.g., 21°C) triggered upon room entry, and an energy-saving setback temperature (e.g., 28°C) triggered after the vacancy delay expires.
Videos
Introducing the RZ050 AC Motion Sensor
RZ050 User Guide
RZ050 AC Compatibility Test
