It starts with a cat, or perhaps a shift in sleep position. It’s 3:14 AM. The studio apartment, previously a sanctuary of shadow and sleep, is instantly hit with 4,000 lumens of 4000K neutral-white light. The overhead wafers, installed by a developer who prioritized “modern efficiency” over biology, have been triggered by a motion sensor mounted near the kitchenette. Because there are no walls to stop the light, the “kitchen” is now the “bedroom,” and the “bedroom” is an operating theater. The resident squints, cortisol spikes, and the night is effectively over.
This phenomenon, the “Stadium Effect,” is the primary failure mode of smart lighting in small, open-plan spaces. In a traditional home, walls contain the mistakes of a lighting system. If the bathroom light triggers accidentally, the door blocks the glare. In a studio or loft, light travels until it hits a surface. Without drywall, darkness must become the divider. Creating that divider requires abandoning the default settings of consumer electronics and applying a stricter, almost hostile logic to how sensors view the room.
The Physics of False Positives
To stop the accidental blinding, you have to understand how the sensor actually sees. Most residential motion detectors use Passive Infrared (PIR) technology. They aren’t cameras. They’re heat-seekers looking for differential changes. A PIR sensor looks out at the room through a faceted Fresnel lens—those little plastic domes that look like insect eyes. This lens slices the room into radial sectors. When a heat source (a human, a large dog, or a blast of forced air) moves from one sector to another, the sensor registers a voltage change and closes the relay. Lights on.
The problem in a studio is that these sensors are designed with a “more is better” philosophy. Manufacturers like Leviton or Lutron compete on sensitivity and coverage area, boasting 180-degree fields of view and 900 square feet of coverage. In a 500-square-foot studio, this means a sensor on the entry wall can often “see” heat signatures in the bed, or even reflections off glass partitions.
Glass is particularly treacherous in modern renovations. A PIR sensor cannot see heat through glass, but it can be triggered by rapid temperature changes on the glass surface or, more commonly, by the sensor having a line of sight around the divider. Furthermore, “pet immunity” claims on consumer-grade sensors are often overstated. A 15-pound cat jumping from a counter to the floor generates a heat vector significant enough to trigger a standard sensitivity setting. If the sensor controls the main overhead array, the cat’s midnight snack becomes the resident’s wake-up call.
Get Inspired by Rayzeek Motion Sensor Portfolios.
Doesn't find what you want? Don't worry. There are always alternate ways to solve your problems. Maybe one of our portfolios can help.
The Logic Fix: Vacancy Over Occupancy
We often blame the hardware, but the configuration is usually the culprit. In automated lighting, there are two distinct logic modes: Occupancy and Vacancy. The terms sound identical to the layperson, but the distinction saves leases and marriages.
Occupancy Mode is “Auto-On / Auto-Off.” You walk in, lights turn on. You leave, lights turn off. This is excellent for public restrooms and commercial corridors. It is disastrous for a studio apartment sleeping zone. If you toss and turn, the room thinks you have entered.
Vacancy Mode is “Manual-On / Auto-Off.” To turn the lights on, you must physically tap the switch. But if you leave the apartment (or fall asleep) and no motion is detected for a set period, the lights turn off automatically. This simple inversion of logic solves the vast majority of “Stadium Effect” incidents. It ensures light never occurs without explicit human intent, while retaining the safety net of auto-shutoff when forgotten.
For renters dealing with older wiring or strict landlords, this logic doesn’t always require a screwdriver. While a hardwired Lutron Maestro sensor switch is the gold standard for this, plug-in smart home ecosystems often allow this logic to be programmed via app. A motion sensor placed under a kitchen cabinet can be linked to a smart bulb, but configured in the app to only turn the light off after 10 minutes of stillness, never on. The “On” command remains the domain of a physical button.
The Physics Fix: Blinders and Tape
Sometimes, software logic isn’t enough. If the sensor controls a pass-through area—like the hallway connecting the bathroom and the living space—you might still want Auto-On functionality, but strictly limited to where it triggers. The sensor’s vision must be physically amputated.

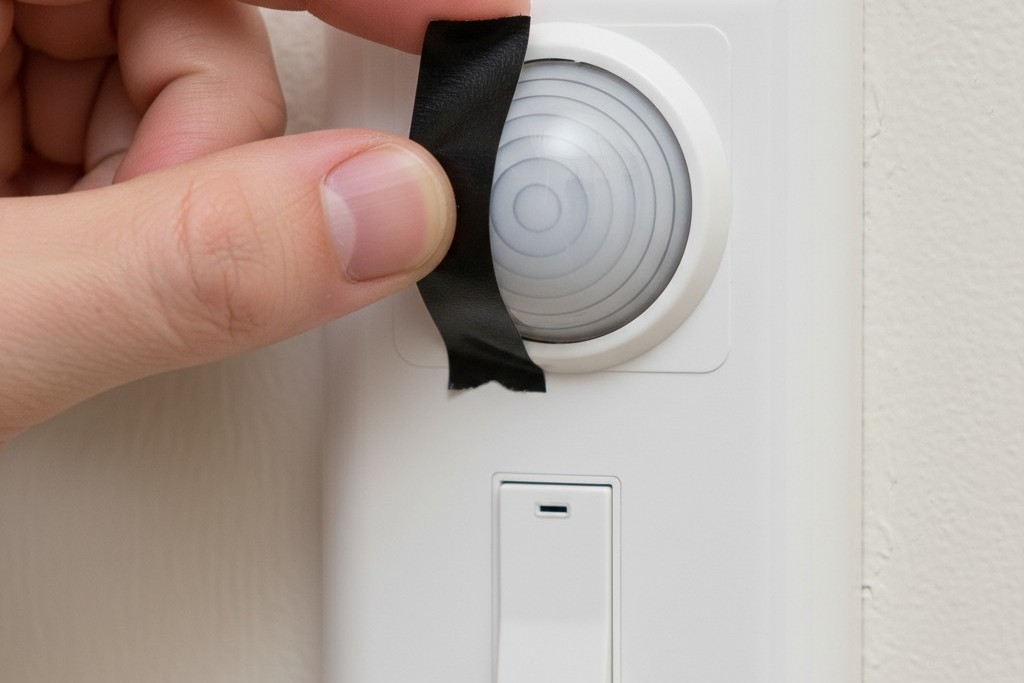

High-end commercial sensors come with internal plastic shutters to block specific segments of the lens. Residential units rarely do. The solution is black gaffer tape (or electrical tape in a pinch). By taping over the left or right third of the PIR lens, you artificially narrow the Field of View (FOV).
Imagine the sensor’s view as a cone. If that cone spills over onto the corner of the bed, the lights will trigger when you roll over. By applying a vertical strip of tape to the side of the lens facing the bed, you slice that part of the cone off. The sensor now has “tunnel vision.” It will only fire when you physically step into the specific zone of the kitchen or hallway, not when you are merely near it. It is a crude, analog hack that outperforms sophisticated software sensitivity sliders every time.
Maybe You Are Interested In
- Occupancy (Auto-ON/Auto-OFF)
- 12–24V DC (10–30VDC), up to 10A
- 360° coverage, 8–12 m diameter
- Time delay 15 s–30 min
- Light sensor Off/15/25/35 Lux
- High/Low sensitivity
- Auto-ON/Auto-OFF occupancy mode
- 100–265V AC, 10A (neutral required)
- 360° coverage; 8–12 m detection diameter
- Time delay 15 s–30 min; Lux OFF/15/25/35; Sensitivity High/Low
- Auto-ON/Auto-OFF occupancy mode
- 100–265V AC, 5A (neutral required)
- 360° coverage; 8–12 m detection diameter
- Time delay 15 s–30 min; Lux OFF/15/25/35; Sensitivity High/Low
- 100V-230VAC
- Transmission Distance: up to 20m
- Wireless motion sensor
- Hardwired control
- Voltage: 2x AAA Batteries / 5V DC (Micro USB)
- Day/Night Mode
- Time delay: 15min, 30min, 1h(default), 2h
- EU plug power adapter
- UK plug power adapter
- US plug power adapter
- 5V DC
- Transmission Distance: up to 30m
- Day/Night mode
- 5V DC
- Transmission Distance: up to 30m
- Day/Night mode
- Voltage: 2 x AAA
- Transmission Distance: 30 m
- Time delay: 5s, 1m, 5m, 10m, 30m
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Occupancy mode
- 100V ~ 265V, 5A
- Neutral Wire Required
- 1600 sq ft
- Voltage: DC 12v/24v
- Mode: Auto/ON/OFF
- Time Delay: 15s~900s
- Dimming: 20%~100%
- Occupancy, Vacancy, ON/OFF mode
- 100~265V, 5A
- Neutral Wire Required
- Fits the UK Square backbox
Hardware That Respects Boundaries
When the “Landlord Special” dome light must be bypassed entirely, the choice of hardware becomes a defensive strategy. The goal is to separate the control point from the load point.
Looking For Motion-Activated Energy-Saving Solutions?
Contact us for complete PIR motion sensors, motion-activated energy-saving products, motion sensor switches, and Occupancy/Vacancy commercial solutions.
Smart bulbs (like Philips Hue or LIFX) are often marketed as the solution, but they fail the “Guest Test” miserably if used alone. If a guest flips the wall switch, the bulb loses power and becomes a brick. The sophisticated approach for a studio is to use a “No-Neutral” smart dimmer at the wall (such as the Lutron Caséta line) or a switch-lock cover (like the Lutron Aurora) that keeps the circuit live while giving you a physical knob.
This allows you to decouple the switch from the ceiling light. You can program the wall switch to control a floor lamp instead of the overhead glare bomb. This is vital for the “Disco Effect” fear many design-conscious residents have. Smart lighting does not have to mean RGB party modes. The highest utility of smart lighting in a studio is Warm Dim technology—lights that get warmer (more orange/amber, 2200K) as they dim, mimicking the sunset curve.
Note: While the industry is moving toward the Matter standard for interoperability, the reality on the ground is still a messy beta. Sticking to established bridges (Hue, Lutron) is currently the only way to guarantee the lights actually work when the Wi-Fi acts up.
Light as a Divider
Ultimately, solving the Stadium Effect does more than prevent accidental triggers—it creates zones of darkness. In a single room, a pool of light over the kitchen island and a pool of light by the reading chair, separated by a band of shadow, creates the psychological illusion of two rooms.
By forcing sensors into Vacancy Mode, blinding their peripheral vision with tape, and lowering the source of light to below eye level (floor lamps, table lamps) after 9 PM, the studio apartment stops feeling like a surveillance box. The technology recedes, walls of shadow appear, and the resident can finally sleep.
