The Physics of Inflation: Why Your Motion-Activated Decor Fails

Walk through any subdivision in December, and you’ll see two schools of thought regarding inflatable holiday decor. First, there’s the “24/7” approach, where a 12-foot Santa hums aggressively through the night, keeping the neighbors awake with the drone of a cheap brushless fan while burning through its limited bearing life. Second—and far more depressing—is the “Timer” approach. This results in the daytime spectacle of rain-soaked nylon carcasses strewn across the lawn like crime scene evidence, waiting for a 5:00 PM resurrection that may or may not happen depending on how much water they’ve swallowed.

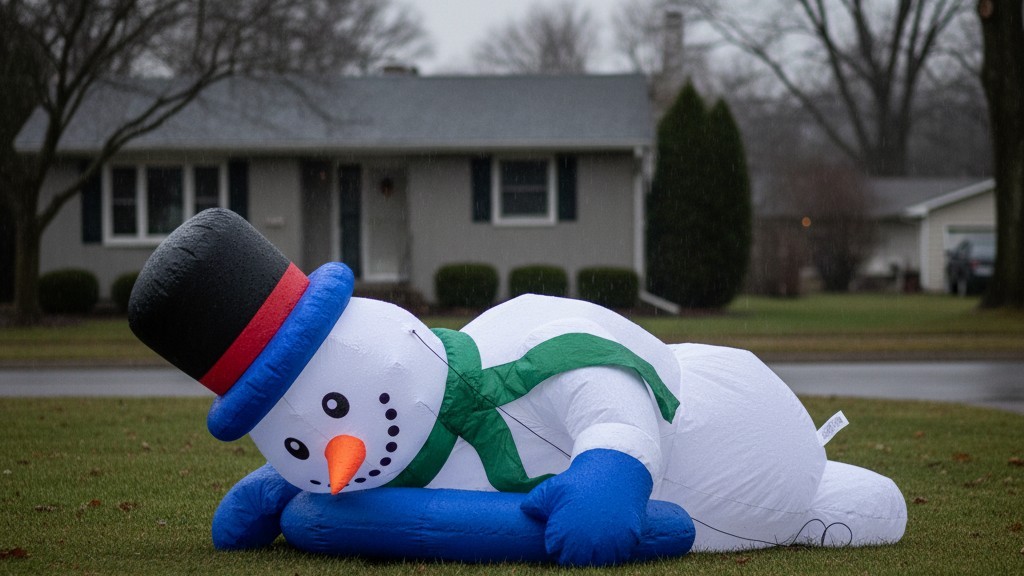

A large, colorful holiday inflatable lies completely deflated and wrinkled on a damp, green suburban lawn during the daytime. — Leaving inflatables on a timer often results in this sad daytime scene, where they collect water and appear lifeless.

Neither is acceptable for a competent homeowner.

The obvious middle ground—triggering the display only when someone actually walks by—seems like the elegant solution. It saves electricity, spares the motor bearings, and reduces noise pollution. But if you’ve ever tried to rig a standard motion sensor to a large inflatable, you know the result: a visitor triggers the sensor, walks past a deflated pile of fabric, and is halfway to the front door before the decoration manages to lift its head off the mulch. The concept is fine. The physics are the problem. To make an inflatable respond to a human presence without looking like a struggling green slug, you have to engineer around the lag.

The Lag Calculation

Your sensor isn’t the issue. Air displacement is. A standard consumer-grade inflatable—let’s take a common 8-foot Gemmy model—is powered by a 12V DC fan or a small 120V induction motor. These fans are designed to maintain internal pressure, not to generate the high static pressure needed for rapid inflation. They are essentially low-torque air movers.

When the power cuts, the nylon collapses. If it’s raining, the fabric absorbs water, increasing the specific weight of the material. When the power returns, the fan has to overcome not just atmospheric pressure, but the dead weight of wet, folded nylon. This takes time. In ideal conditions, a dry inflatable might stand up in 30 seconds. In a Pacific Northwest drizzle, that can stretch to 90 seconds or more.

Compare this to the walking speed of a human. An average adult moves at about 3 to 4 feet per second. If your walkway is 30 feet long, a visitor covers the entire distance in under 10 seconds. Do the math. If your motion sensor is located at the inflatable itself, the visitor will be ringing your doorbell while Santa is still trying to inflate his left boot. The “surprise” element is gone; you’re just left with the noise of a fan starting up behind them, which sounds less like holiday cheer and more like a vacuum cleaner malfunction.

Get Inspired by Rayzeek Motion Sensor Portfolios.

Doesn't find what you want? Don't worry. There are always alternate ways to solve your problems. Maybe one of our portfolios can help.

PIR Motion Sensors

Motion Sensor Switches

Occupancy Sensors

Air Conditioner Motion Sensor

Motion Sensor Light Strips

Low-voltage DC Motion Sensors/Dimmers

Wireless Motion Sensor Kits

One critical warning on motor control: don’t attempt to solve the noise problem by putting the fan on a dimmer or a “smart” speed controller. These are usually induction motors or simple DC brushless fans that rely on specific voltage curves. Starving them of voltage doesn’t make them whisper-quiet; it increases the in-rush current as the motor struggles to maintain torque, leading to overheating and eventually a melted thermal fuse. If the fan is too loud, buy a better fan or build a baffle box. Do not throttle the voltage.

Perimeter Defense and Geometry

To solve the lag, you must divorce the trigger from the event. Stop thinking “motion-activated light.” Start thinking “perimeter defense system.” The sensor cannot be on the decoration. It must be placed at the entry point of the property, or at least 40 to 50 feet up-path from the target area.

Looking For Motion-Activated Energy-Saving Solutions?

Contact us for complete PIR motion sensors, motion-activated energy-saving products, motion sensor switches, and Occupancy/Vacancy commercial solutions.

Send an Email

Contact Form

Chat Online

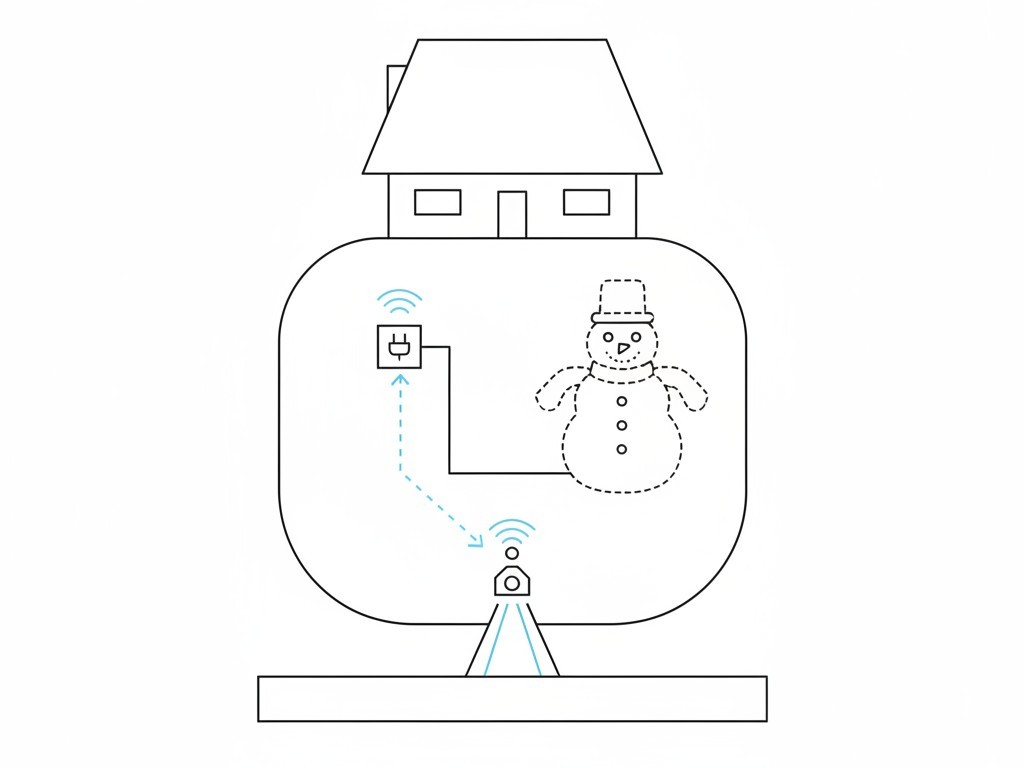

A diagram showing a house with an inflatable on the lawn and a motion sensor placed far away at the start of the walkway to provide early detection. — Placing the motion sensor at the property’s edge, not near the decoration, provides the necessary lead time for inflation.

This requires a “tripwire” mindset. You need a sensor at the sidewalk or the driveway entrance that sends a signal to the switch controlling the inflatable. This buys you the necessary lead time. If you detect a target 50 feet away, you gain roughly 15 seconds of inflation time before they reach the display. It still won’t be fully upright, but it will be in the “rising” phase, which is theatrically far more interesting than the “dead” phase.

For this to work, you can’t rely on the passive infrared (PIR) sensors built into cheap solar lights. Those have a detection cone that is too wide and a range that is too short—often barely 15 feet. You need a directional sensor, something closer to a driveway alarm system. You can modify off-the-shelf driveway alerts (like the Harbor Freight Bunker Hill units) to trigger a relay, or use high-quality outdoor-rated Zigbee motion sensors. Just be aware that PIR sensitivity drops as the ambient temperature gets closer to human body temperature, though in December, the cold usually works in your favor, making the heat signature of a mail carrier pop against the background.

The Latency of the Cloud

Even with perfect sensor placement, you can lose the race if your communication protocol is sluggish. If your sensor talks to a hub, which talks to a cloud server in Virginia, which talks back to your hub, which talks to a Wi-Fi smart plug, you have introduced 500ms to 2 seconds of latency. That might sound negligible, but combined with the slow spin-up of a cheap impeller, every second counts.

Avoid Wi-Fi smart plugs for this specific application. They are chatty and dependent on internet health. The superior approach is a local protocol like Zigbee or Z-Wave, or even a direct 433MHz RF bridge if you’re comfortable with a soldering iron. Local processing means the signal goes from Sensor -> Hub -> Switch entirely within your own network, usually in under 200 milliseconds. This tightness is what allows the effect to feel responsive rather than accidental.

The Moisture and Mold Factor

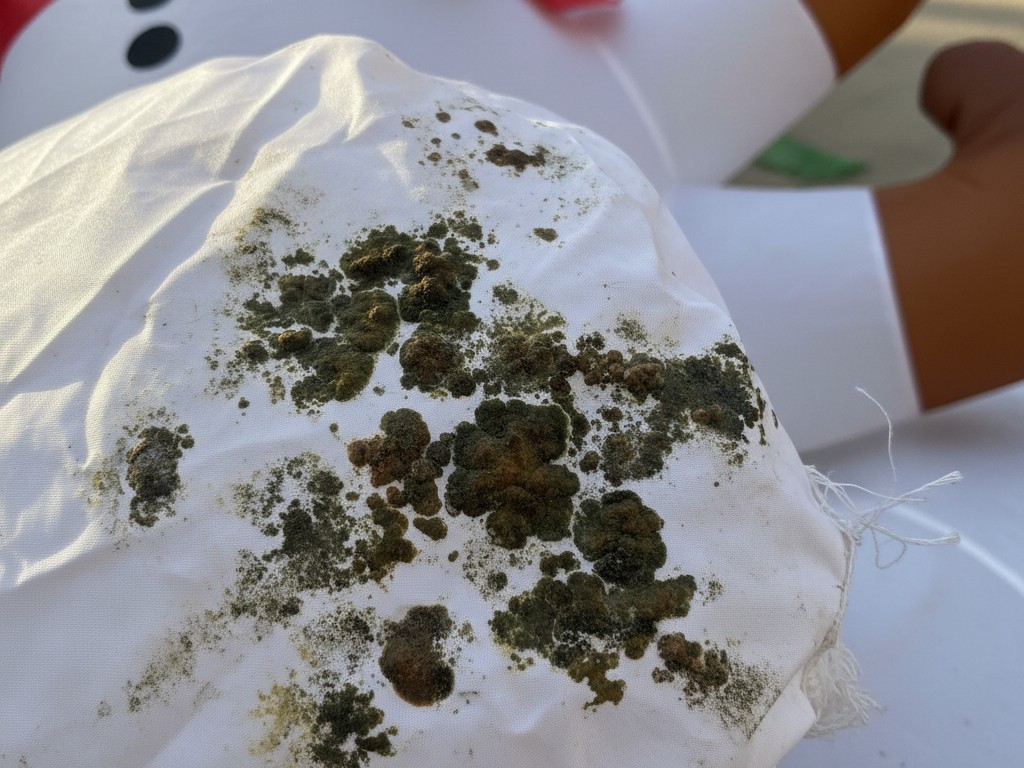

A close-up shot of the white nylon fabric of a holiday inflatable, showing dark, unsightly spots of mold growth. — Cycling inflatables in wet weather can trap moisture, leading to permanent mold stains on the interior fabric.

There is a final, non-electrical risk to managing inflatables this way: biological growth. When you leave a nylon decoration inflated 24/7, the constant airflow keeps the interior relatively dry. When you cycle it on and off, specifically in wet climates, you create a cycle of wetting and collapsing. The folds of the deflated fabric trap pools of water.
