In commercial retrofits, the L-shaped corridor is the graveyard of “good enough” sensor placement. It’s the scenario where standard install-and-walk-away tactics consistently fail, usually resulting in a frantic wave of arms from someone plunged into darkness halfway to the break room.
A common assumption is that a high-end sensor with a 360-degree view and a massive detection radius can simply sit near the corner and cover both legs of the hallway. That assumption is expensive. It leads to callbacks, complaints about “haunted” lights, and eventually, a facility manager demanding the system be ripped out entirely.
The failure here is rarely a defect in the hardware itself. A Rayzeek ceiling mount or similar commercial-grade PIR (Passive Infrared) sensor will perform exactly as the laws of physics dictate. The problem is that the installer is asking the sensor to do something impossible: see through a wall, or detect motion that is effectively invisible to its lens. When a user rounds a blind corner, they enter a dead zone that a single vertex-mounted sensor often cannot resolve until it’s too late. The coffee spills, the shin bangs against a cart, and the lighting control system gets blamed for what is ultimately a failure of geometry.
The Physics of the “Blind” Sensor
To solve the L-shape, you have to stop thinking of a motion sensor as a camera. It doesn’t “see” people; it detects the movement of heat across a grid. Inside the white plastic dome of a PIR sensor sits a Fresnel lens—a faceted piece of optical plastic that slices the room into wedge-shaped detection zones. The sensor triggers when a heat source (a human body) crosses the boundary between these zones.
This mechanism creates a critical weakness often buried in product manuals: the difference between tangential and radial motion.
Tangential motion is movement across the sensor’s field of view. This cuts through multiple detection wedges rapidly, creating a strong, unmistakable signal. It is the best-case scenario for PIR.
Radial motion, however, is movement directly toward or away from the sensor. When a person walks straight at a sensor, they essentially stay within a single wedge for a longer duration. They present a static heat signature that grows slightly larger but doesn’t “move” across the grid. The sensor is nearly blind to this approach.
Get Inspired by Rayzeek Motion Sensor Portfolios.
Doesn't find what you want? Don't worry. There are always alternate ways to solve your problems. Maybe one of our portfolios can help.
In a long corridor, a person walking down the center line is moving radially relative to a sensor placed at the far end. They might walk twenty feet before the sensor registers enough differential to trigger. Now, consider the L-shape. If you place a single sensor at the corner, users approaching from either leg of the L are moving radially—directly at the sensor. They remain in the blind spot until they are practically underneath the device.
You might be tempted to solve this with dual-technology sensors (combining PIR with Ultrasonic or Microwave detection) to fill the room with active waves. While technically true that Ultrasonic is more sensitive to minor motion, it introduces a new set of liabilities in a hallway. Ultrasonic waves bounce off hard surfaces and can penetrate drywall and glass. In a retrofit, this means the hallway lights trigger every time someone shifts in their chair in an adjacent office or walks past a closed door. For corridors, PIR remains the superior tool for stability, provided the layout respects the limitations of the lens.
The Vertex Strategy: Two Eyes on the Turn

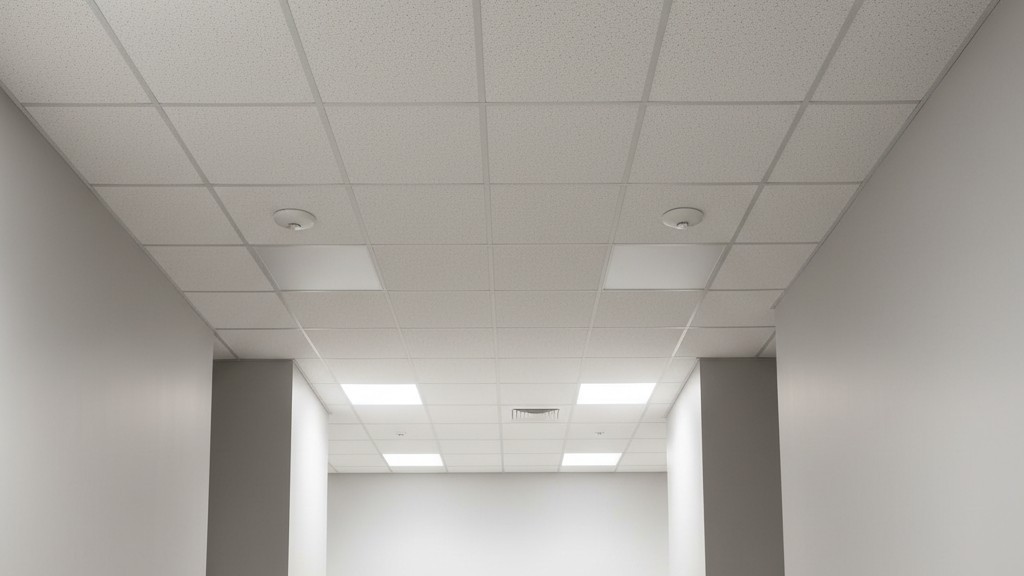

The only way to guarantee a reliable calibration in an L-shaped corridor is to abandon the single-sensor economy. You cannot place one eye at the vertex and expect it to see effectively down both paths. The professional approach requires a dedicated sensor for each leg of the L, positioned to create an overlapping “kill zone” at the turn.
Instead of mounting one unit in the center of the intersection, push two sensors out away from the corner:
- Sensor A in the North leg, perhaps 10 to 15 feet back from the turn, looking South toward the intersection.
- Sensor B in the East leg, looking West toward the intersection.
The exact distance depends on the ceiling height and the coverage pattern of the specific Rayzeek model, but the intent is geometric: you want Sensor A to catch the person in the East leg moving tangentially (across its view) before they even reach the turn.
This creates a scenario where the sensors watch each other’s blind spots. The person walking down the North hallway is moving radially toward Sensor A (weak detection) but tangentially across the field of view of Sensor B (strong detection). By the time they reach the critical decision point—the corner—both sensors have had ample opportunity to register a tangential crossing. The lights are on before the user pivots.
This layout also demands physical tuning beyond simple placement. In complex layouts where a sensor might see through an open doorway into a conference room or stairwell, lens masking is non-negotiable. Most commercial sensors come with opaque sticker strips or plastic inserts. These aren’t packaging waste; they are essential tools for shaping the detection cone to match the corridor walls, ensuring the system ignores movement outside the hallway.
The Invisible Enemy: Airflow and Heat
Even with perfect geometric placement, a sensor can be defeated by the environment. In the trade, we call these “ghost switches”—lights that cycle on and off all night with no humans present. In almost every case, the sensor isn’t faulty. It’s just losing a fight with the HVAC system.
Maybe You Are Interested In
- Occupancy (Auto-ON/Auto-OFF)
- 12–24V DC (10–30VDC), up to 10A
- 360° coverage, 8–12 m diameter
- Time delay 15 s–30 min
- Light sensor Off/15/25/35 Lux
- High/Low sensitivity
- Auto-ON/Auto-OFF occupancy mode
- 100–265V AC, 10A (neutral required)
- 360° coverage; 8–12 m detection diameter
- Time delay 15 s–30 min; Lux OFF/15/25/35; Sensitivity High/Low
- Auto-ON/Auto-OFF occupancy mode
- 100–265V AC, 5A (neutral required)
- 360° coverage; 8–12 m detection diameter
- Time delay 15 s–30 min; Lux OFF/15/25/35; Sensitivity High/Low
- 100V-230VAC
- Transmission Distance: up to 20m
- Wireless motion sensor
- Hardwired control
- Voltage: 2x AAA Batteries / 5V DC (Micro USB)
- Day/Night Mode
- Time delay: 15min, 30min, 1h(default), 2h
- EU plug power adapter
- UK plug power adapter
- US plug power adapter
- 5V DC
- Transmission Distance: up to 30m
- Day/Night mode
- 5V DC
- Transmission Distance: up to 30m
- Day/Night mode
- Voltage: 2 x AAA
- Transmission Distance: 30 m
- Time delay: 5s, 1m, 5m, 10m, 30m
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Load Current: 10A Max
- Auto/Sleep Mode
- Time delay: 90s, 5min, 10min, 30min, 60min
- Occupancy mode
- 100V ~ 265V, 5A
- Neutral Wire Required
- 1600 sq ft
- Voltage: DC 12v/24v
- Mode: Auto/ON/OFF
- Time Delay: 15s~900s
- Dimming: 20%~100%
- Occupancy, Vacancy, ON/OFF mode
- 100~265V, 5A
- Neutral Wire Required
- Fits the UK Square backbox

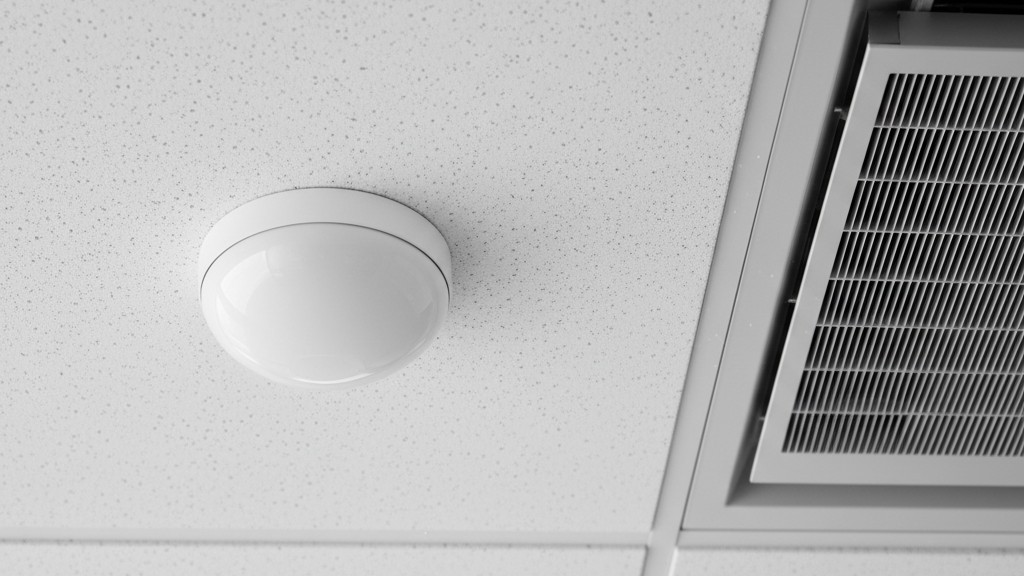

PIR sensors detect heat differentials. A sudden blast of hot air from a ceiling supply vent during the winter morning warm-up cycle looks exactly like a person to a PIR element. If a sensor is mounted within four to six feet of a supply diffuser, the turbulence and temperature spike will trigger false positives. This is particularly common in commercial office parks where the “unoccupied” temperature setback is aggressive, leading to intense bursts of conditioning when the system wakes up.
