The most damaging moment in a medical facility isn’t always a surgical error or a misdiagnosis. Sometimes, it is simply the room going dark.
Consider a standard 10×10 exam room. A patient sits on the table, perhaps in a gown, feeling vulnerable. The physician is in the corner, typing notes into the Electronic Health Record (EHR) or listening to heart sounds. These are moments of stillness. Because commercial energy codes are written for bustling open offices or warehouses, the standard “energy-saving” sensor mounted in the corner decides the room is empty. The lights cut out.
The patient panics. The provider fumes. You will see doctors waving their arms over their heads like they are flagging down a rescue plane just to get the lights back on. This is the “waving arms syndrome.” It isn’t just a nuisance; it is a failure of care. When we design for healthcare, we aren’t just managing kilowatt-hours. We are managing trust. If the building fights the doctor, the patient loses confidence in the facility.
The Physics of Invisibility
To fix this, we have to stop treating exam rooms like janitor closets. The root of the problem is the sensor technology itself. The vast majority of commercial sensors installed today are Passive Infrared (PIR).
PIR sensors work by detecting the movement of heat signatures across a field of view. They are excellent at detecting a person walking through a doorway or a forklift moving down an aisle—what we call “major motion.” However, they are fundamentally blind to “minor motion.” A doctor typing involves finger movement, but the heat differential is negligible from ten feet away. A patient sitting still while waiting for a consult is effectively invisible to a PIR sensor.

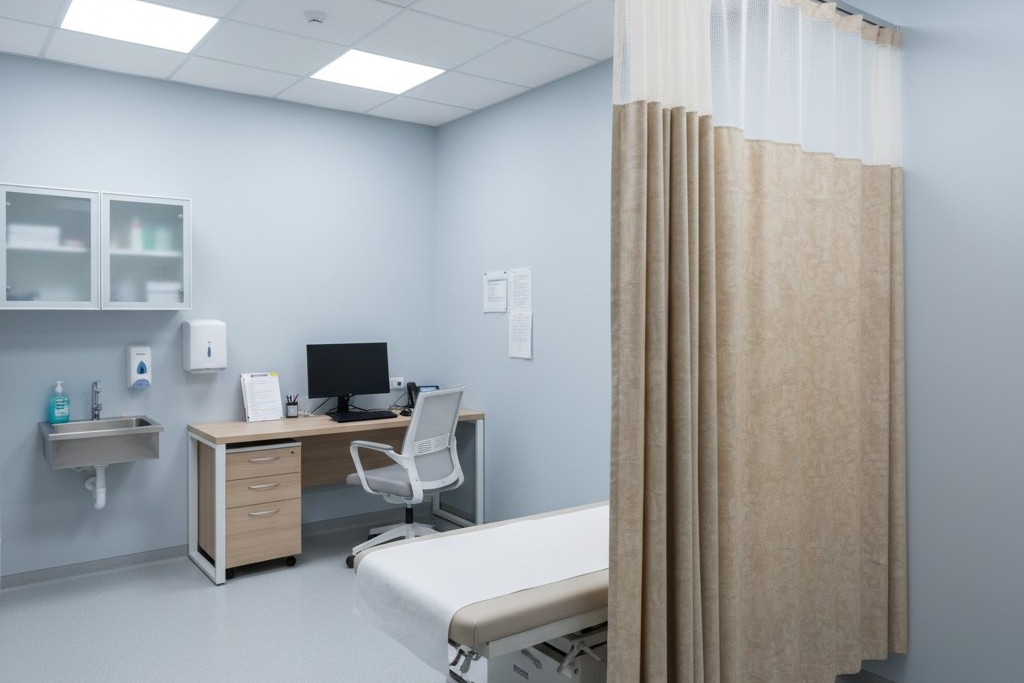

Room geometry makes it worse. In a gynecological or dermatology exam, privacy curtains are frequently drawn. A PIR sensor relies on line of sight. If a curtain blocks the sensor’s view of the physician, the sensor assumes the room is empty. I have seen retrofits where a PIR sensor was placed by the door; the moment the doctor stepped behind the curtain to begin a procedure, the timer started ticking down to a blackout.
The only viable solution for the patient zone is Dual-Technology (Dual-Tech). These sensors combine standard PIR with Ultrasonic detection. While PIR looks for heat in motion, Ultrasonic sensors fill the volume of the room with high-frequency sound waves (usually 32kHz or 40kHz) and listen for the Doppler shift caused by movement.
Ultrasonic sensors do not need line of sight. They can “hear” around the privacy curtain. They can detect the expansion of a chest cavity during breathing or the subtle shift of a person adjusting their posture on the exam table. Yes, they cost more than basic PIR units. Yes, they can occasionally be tricked by high-velocity HVAC airflow vibrating a poster on the wall. But in a clinical environment, a “false on” (wasting 15 minutes of LED energy) is infinitely preferable to a “false off” (scaring a patient).
Privacy and the “Manual On” Imperative
Once you have the right sensor, you have to program the logic correctly. This is where most electrical contractors, used to office buildings, get it wrong. They default to “Occupancy Mode” (Auto-ON/Auto-OFF).
In an exam room, Auto-ON is a privacy violation. Imagine a patient is half-dressed, waiting for the doctor. The door is cracked slightly for airflow or to signal the nurse. In a busy corridor, staff are constantly walking past that door. If the sensor is set to Auto-ON, every time a nurse walks by the gap, the lights in the exam room blast on to full brightness. It feels like an interrogation. It signals to the patient that they are exposed.
