Air Conditioner Motion Sensor with 2 Door Window Sensors Controller Kit

Name: Air Conditioner Motion Sensor with 2 Door Window Sensors Controller Kit
Brand: Rayzeek
Price: 45 USD
Availability: InStock

RZ050-DS + 2 X RZ001

$45.00

Shop Now

Product highlights

Dual-Opening Perimeter Protection: Controls AC shut-off based on room occupancy (PIR motion) and the status of two separate doors or windows.
Enhanced Energy Savings: Eliminates cooling waste from empty rooms and open access points, cutting AC electricity consumption by 20% to 50%+.
Both Sensors Pre-Paired: Both included RZ001 sensors arrive factory pre-paired to the RZ050-DS controller for immediate out-of-the-box deployment.
Logical OR Operation: AC automatically shuts off if either monitored door or window is left ajar past its configured time delay.
USB-C Continuous Controller Power: RZ050-DS is powered via 5V DC USB-C (1m USB-C cable included); sensors run on 2x AAA batteries each.
Independent Delay Timers: Configure unique time delays on each opening (5s, 1min default, 5m, 10m, 30m) and on the motion controller (15m, 30m, 1h, 2h).
Compatible & Safe: Works with split ACs operated by remotes with a discrete OFF button (single toggle remotes not supported). Won't void AC warranty.

Not what you're looking for? View our portfolio:

Consult an Expert

Quick delivery: 99% in stock

Full motion-activated product line

Inquire for bulk ODM/OEM orders

Ultimate Room Efficiency Kit

Achieve unparalleled control over your AC usage and energy costs. This premium kit combines the smart RZ050-DS motion controller with two RZ001 door/window sensors, offering comprehensive monitoring for your space. While the RZ050-DS ensures the AC turns off when the room is unoccupied, the dual RZ001 sensors guard against energy loss through multiple openings – perfect for rooms with both a door and a window, or two separate access points. They work in harmony, providing automated, multi-condition control to maximize savings without compromising comfort.

Your AC’s Smart Co-Pilot (RZ050-DS)

The RZ050-DS is the intelligent heart of your AC control system. Using advanced PIR technology, it detects movement to determine if a room is occupied. It learns your AC remote’s OFF command to turn the AC off when you leave. With customizable time delays and an intelligent Night Mode that uses a light sensor for uninterrupted sleep, the RZ050-DS provides personalized, efficient comfort control, seamlessly integrating signals from paired door sensors.

Double Guard Against Waste (2 x RZ001)

Secure your savings at multiple points! This kit includes two RZ001 wireless door & window sensors to act as vigilant guards against energy waste. Easily install them on different doors or windows within range of the RZ050-DS. Each sensor uses a magnetic contact to detect when its assigned opening is left ajar longer than your chosen time delay. They independently signal the RZ050-DS controller to turn off the AC, ensuring you aren’t cooling the outdoors, no matter which opening is compromised. It’s the ideal way to comprehensively seal your cooled environment.

Features, Benefits, Specs

Features & Benefits

Automatic AC Shut-Off: Turns AC OFF based on room vacancy OR if either monitored door/window is open by transmitting the learned discrete OFF command from your remote. (OFF-only operation; does not turn ON or restart AC).
Both Sensors Factory Pre-Paired: Both included RZ001 wireless door sensors are paired to the controller at the factory for zero-configuration out-of-box operation.
Multi-Point Perimeter Defense: Includes 1x RZ050-DS PIR controller and 2x RZ001 magnetic contact sensors, ideal for rooms with both a door and window or dual sliding patio doors.
Independent Timer Settings: Set different time delays on each sensor (e.g., 1 min on the main entry door, 5 mins on the balcony slider). Controller vacancy delay is independently set to 15m, 30m, 1h (default), or 2h.
USB-C Line-Powered Controller: RZ050-DS is powered continuously via 5V DC USB-C (1-meter USB-C cable included; 5V USB wall adapter sold separately). No battery maintenance on controller.
Battery-Powered Sensors: Each RZ001 operates on 2x AAA batteries (not included) with low-voltage warnings and automatic safety shutdown below 2.3V.
30-Minute Open Alert Repeat: If an opening is left ajar, the assigned RZ001 re-transmits the shut-off command every 30 minutes until closed.
Intelligent Night Mode (RZ050-DS): Ambient light sensor (<1 Lux) prevents motion-based AC shut-off during sleep, while perimeter door/window protection remains active.
7 RF Signal Groups: Supports 7 distinct RF group channels to eliminate cross-talk interference in multi-unit hospitality installations within the 30-meter RF range.

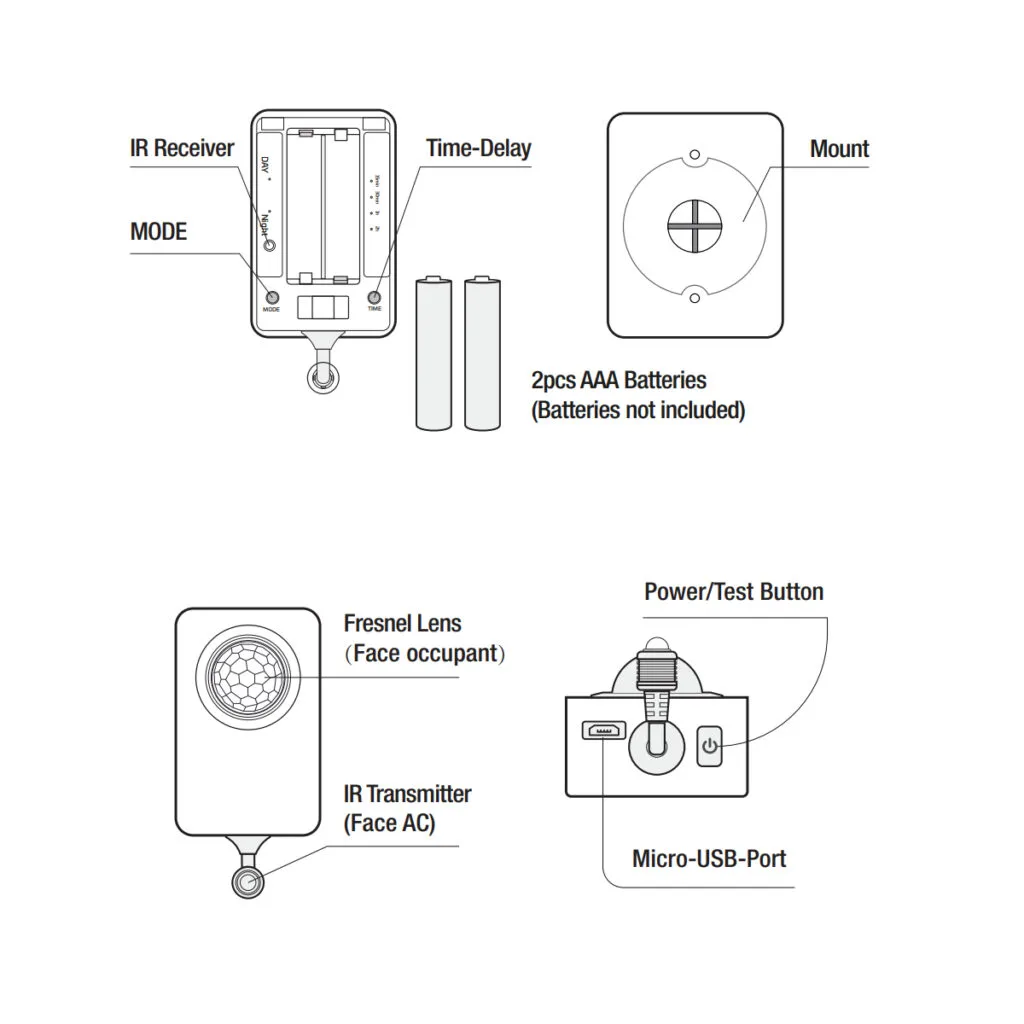

RZ050-DS Controller

Power

5V DC USB-C (1m USB-C Cable Included; Power Adapter Not Included)

Time Delay Options

15min, 30min, 1h (default), 2h (coerced to 1h in Night Mode)

Motion Detecting Range

6-9m Max (Recommended occupant distance: 1-6m)

IR Transmitting Range

<10m (Initial learning range: ~10cm; testing range: ≤8m)

IR Transmitting Angle

30 degrees (Mechanically adjustable)

Mounting

Wall mount (Included screws or adhesive tape)

Size

45 x 70 x 64 mm

Operating Conditions

Indoor use only, 0°C to 40°C, up to 90% RH

RZ001 Door Sensor (2 Included)

Power

2 x AAA Batteries per sensor (Not Included; Cutoff at 2.3V)

Time Delay Options

5s, 1min (default), 5min, 10min, 30min (Repeats every 30min if open)

Transmission Distance

Up to 30m in open space (433MHz RF, 7 Selectable Groups)

Mounting

Adhesive tape or screws (included)

Max Alignment Gap

7mm between sensor and magnet when closed

Operating Conditions

Indoor use only, 0°C to 40°C, up to 90% RH

Comparison Table

	RZ050	RZ050-DP	RZ050-DS
Auto AC Control Modes	Turn AC OFF Turn AC ON & OFF (Optional)	Turn AC OFF Turn AC ON & OFF	Turn AC OFF
Window/Door Sensor Compatible	No	No	Standard kits include 1 or 2 door sensors (RZ050-DS-1 / RZ050-DS-2) Extra door sensors purchasable
Power Supply	Battery Only	Battery USB *	USB Only *

Note : USB Power adaptor not included in the package, purchase here(Plug type: US, UK, EU).

FAQ

What is included in the RZ050-DS 2-Sensor Kit?

The 2-Sensor Kit contains: 1x RZ050-DS PIR Air Conditioner Motion Controller, 2x RZ001 Wireless Magnetic Sensors (2 main sensor units + 2 magnetic contacts), 1x 1-meter USB to USB-C power cable, high-bond double-sided mounting adhesive tapes and wall screws for all 3 devices, and a pinhole adjustment tool. Note: Requires 4x AAA batteries in total (2 per door sensor) and a 5V USB wall adapter for the controller; none included.

Are BOTH door sensors pre-paired to the controller out of the box?

Yes. Both RZ001 sensors included in the 2-Sensor Kit are factory pre-paired to the RZ050-DS controller on the same RF signal group. You do not need to perform manual RF pairing prior to mounting.

How do the two door sensors work together to control the AC?

The two sensors operate under a logical “OR” rule. If EITHER sensor (for example, the balcony patio door OR the bedroom window) is left open longer than its programmed time delay, it transmits an RF signal to the RZ050-DS controller, which immediately transmits the IR command to shut down the air conditioner. Both openings must be closed for normal motion-based cooling to remain active.

Can the two door sensors have different time delay settings?

Yes. Each RZ001 sensor operates independently and maintains its own internal timer configured via its onboard pinhole button: Sensor 1 (e.g., Main Entry Door) can be set to 1 minute (2 flashes) to allow normal entry and exit without cutting off the AC. Sensor 2 (e.g., Balcony Slider or Window) can be set to 5 minutes (3 flashes) or 10 minutes (4 flashes) if guests frequently step outside briefly. Available options on each sensor: 5s, 1min default, 5min, 10min, 30min.

How is the RZ050-DS controller powered in the 2-Sensor Kit?

The RZ050-DS controller is powered exclusively via 5V DC USB-C using the provided 1-meter USB-C cable connected to a standard 5V USB power adapter (adapter not included). It does not have a battery compartment. Each of the two RZ001 door sensors is independently powered by 2 x AAA batteries (not included).

Can the RZ050-DS 2-Sensor Kit automatically turn the AC back on when doors are closed?

No. The RZ050-DS controller is strictly an OFF-only energy management system. When a door or window is left open, it shuts down the AC to prevent cooling losses. Closing the door stops the sensor from repeating the shut-off signal, but the AC will not restart automatically. The occupant must manually turn on the AC using their remote control.

Why should I choose the 2-Sensor Kit over the 1-Sensor Kit?

The 2-Sensor Kit is tailored for hotel rooms, vacation rentals, and residential suites that feature two separate perimeter openings—most commonly an entry door and an operable window, an entry door and a balcony/patio sliding door, or double sliding glass doors. Using a single sensor leaves the secondary opening unmonitored. The 2-Sensor Kit provides complete room perimeter protection out of a single box.

How does the system prevent interference in hotels with multiple adjacent rooms?

The RZ050-DS system incorporates 7 distinct RF signal groups. When outfitting adjacent hotel rooms or rental units within the 30-meter RF transmission range, set each room’s controller and sensors to a unique group number (Group 1 through 7). This ensures a door opened in Room 101 will never trigger an AC shut-off in Room 102.

What happens if an open door or window is ignored for hours?

The RZ001 sensor transmits its initial shut-off signal upon expiration of its selected delay (e.g., 1 minute). To prevent the AC from being turned back on while the door remains wide open, the sensor repeats the RF shut-off transmission every 30 minutes as long as the magnetic contact remains separated.

How do I know when the batteries in the door sensors need replacing?

Each RZ001 sensor features an intelligent battery monitor: When battery voltage falls, the red LED flashes 10 times, pauses for 3 seconds, and repeats for 3 full cycles. When voltage drops below 2.3V, the sensor executes a safety shutdown signaled by 1 long flash followed by 3 short flashes. Replace both AAA batteries immediately.
