Rayzeek Occupancy Motion Sensor Light Switch, 10A, US, Neutral Required
RZ021-10A-N
$17.00
The RZ021-10A-N motion sensor light switch uses an advanced passive infrared (PIR) motion sensor to detect people in the sensor zone and integrates a photocell for daylight sensing. Users can adjust the configuration by simply pressing the two push buttons on the panel without uncovering the wallplate. Besides occupancy and vacancy mode, the RZ021 series motion sensor switch introduces an innovative manual ON/OFF mode allowing the sensor switch to be used the same as a manual wall switch so that users can have manual override and keep the light always ON/OFF as long as needed. The RZ021 series is a direct replacement for the US standard 1-Gang wall switches. A neutral wire is required for RZ021-10A-N.
- High Load Applications: 10A version capable for loading multiple lights, fans and air conditioners
- Versatile Sensor Mode: Occupancy(Auto-ON, Auto-OFF), Vacancy(Manual-ON, Auto-OFF), Manual ON/OFF(Manual-ON, Manual-OFF)
- Broad Voltage: Applicable for 110V residential and 277V commercial voltage in the US.
- Flexible Wiring: Hot wire, Load wire, Neutral wire and Ground wire. (Can be installed without a neutral wire with RZ021-10A-G)
- Easy Installation: Fit in the US standard 1-Gang wall box
Motion Sensor Light Switch
It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
The versatile RZ021 motion sensor switch is applicable for every residential and commercial application with occupancy, vacancy, and ON/OFF modes integrated for max compatibility, flexibility, and ease of use.
10 Minute Quick Installation
The RZ021-10A-N series is designed for the US markets for single-pole applications. The 110V-277V voltage range works well in homes and offices and the 10A current rating is competent for daily uses. RZ021-10A-N is a 4-wire switch and requires a neutral wire to work.Exclusive ON/OFF Mode
One significant drawback after upgrading to motion-activated light switches is that you partially lose the ability to manually control your lights. It’s not possible to keep the lights ON like you’re used to with the good old wall switch.
The Best Of Both Worlds?
Rayzeek introduces the exclusive ON/OFF mode, allowing users to permanently keep the load ON or OFF the same as a standard light switch. It’s so convenient that users can seamlessly switch between detection mode and manual mode with only one tap.
Say goodbye to all these real-life headaches.
Pets Activate the Light at Night
Dogs and cats are active at night and might frequently trigger your motion light to turn on. That’s their nature. While most motion sensor switches do not have pet-immune features, false positives at night can be a real headache.
Select vacancy or OFF mode, especially in laundry rooms or the kitchen where your pets usually play around.
Take a Relaxing Long Bath
On average, people spend at least 8 minutes in the shower. When taking a relaxing bath at night, the light might unexpectedly turn off if the sensor can’t detect your presence in the bathing area. It can be an unpleasant experience that spoils the mood
Enter ON mode to keep the light always ON during the shower. Enjoy your hot and relaxing bath for as long as your like.
Lighting in Your Kids’ Bedroom
A vacancy sensor switch is used in bedrooms to reduce the electricity waste from the lighting left on by forgetful kids. Occupancy sensors aren’t suitable because they might activate the light at night, waking up kids, but it’s still handier in the daytime.
Now you can use occupancy sensor mode in your kid’s bedroom for the whole day. When it’s bedtime, touch the OFF button to keep the light off for the whole night.
Light False on in Empty Spaces
A fixed heat source(HVAC or hot wind) or even mirror reflection may send false positive IR signals that keep the light on when the space is unoccupied. Most of the time, it’s impossible to relocate the sensor’s position or the heat source as they’re fixed.
When the PIR sensor constantly detects signals and is falsely triggered, select OFF Mode to bypass motion detection
False off With People in the Room
Lights might falsely turn off if the sensor fails to detect the presence of people, e.g., the room is large, has obstacles blocking the IR signal, or fine motion activities such as reading or typing. It’s frustrating to repeatedly re-activate lights by moving your body.
When we need to permanently keep the light ON, enter ON mode by tapping the small button and exit without losing previous settings.
Features, Benefits, Specs
The ultimate energy-saving & lighting automation solution – switch from Auto ON/Auto OFF, Manal ON/Auto OFF, and Manal ON/Manual OFF operating mode for your multi-purpose room.
Features & Benefits
- Occupancy, Vacancy, Manual ON/OFF mode 3 in 1
- Exclusive ON/OFF mode allows the sensor switch to work the same as a standard light switch
- Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins
- Enable ambient light sensor to keep lights off when there is ample natural light
- Low and high sensitivity adjustable
- Adjust settings by tapping buttons without removing the switch plate
- Magnetic latching relay provides better performance
- Made of fire-resistant materials for your safety
- RoHS, CE, FCC certified
Specifications
- Features
-
Sensor Mode
Vacancy mode, Occupancy mode, Manual ON/OFF mode
Time-Delay
15 s, 1 min (default), 3 mins, 5 mins, 15 mins, 30 mins
Light Sensor
Off, 15 Lux, 25 Lux (default), 35 Lux
Sensor Sensitivity
Low Sensitivity, High Sensitivity
- Working Conditions
-
Power Source
110 VAC ~ 277 VAC
Power Frequency
50 / 60Hz
Installation Height
1.2 m ~ 1.6 m
Working Humidity
< 93%RH
Working Temperature
-20 ~ +40℃
- Detection Capability
-
Detection Distance
7 m ~ 9 m (<27℃)
Detection Range
< 150°
Detection Speed
0.6 ~ 1.5m/s
- Bulb Compatibility
-
Fluorescent / Ballast / LED
1000 W / 120 VAC, 1200 W / 277 VAC
Incandescent / Halogen
1000 W / 120 VAC
The Ideal Repalcement
The Rayzeek RZ021 motion sensor switch is the ideal motion-activated wall switch solution for the US market. It can fit in the US standard One-Gang switch box and replace your current light switch within minutes. The 110V-277V wide voltage range makes RZ021 applicable for home and commercial applications. Both “Neutral Required” and “No Neutral” versions are available for new installations and old house retrofit projects.
RZ021-10A-N
- 10A Load: Ideal for high load applications, i,e, controlling multiple lights or HVAC
- Neutral Required: Hot Wire, Load Wire, Neutral Wire, Ground Wire

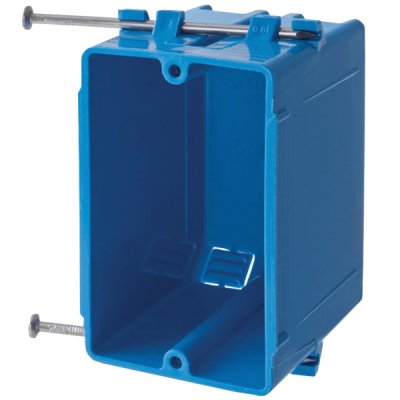

US Standard Switch
RZ021 motion sensor switch fits in the “Single Gang” or “One Gang” electrical switch box and can replace standard light switches in the US market. Also suitable for countries using the US standard switch boxes:- United States
- Canada
- Argentina
- Australia
- Japan
- Mexico
- New Zealand
- Central America
Versatile Applications
Rayzeek RZ021 motion sensor switch is the ultimate solution for automating your home lighting. It can act as an occupancy sensor, vacancy sensor, or a standard light switch to suit the diverse needs of every space. Simply upgrade all your light switches with RZ021 without a second thought because you can always change it to a manual ON/OFF switch when needed.
Bathroom
Occupancy sensor with light sensor enabled is the ideal mode for bathroom usage, especially when you need to use it at night. Manual ON mode can be suitable for long showers.
Garage
Walk in and out of your home garage without the need to reach the light switch with an occupancy sensor switch. Enable daylight sensing to save more energy in the daytime.
Laundry Room
Enjoy the automatic lighting turned on and off for you when arm-full with piles of laundry to wash or clean clothes to take away.
Kitchen
Place an occupancy sensor switch at the entrance and enjoy the automatic lighting while you’re busy cooking and preparing food for your family.
Hallway
Occupancy/vacancy sensor switches can reduce the hours of lighting used by approximately 53% on dark hallways in your basement.
Breakroom
Occupancy sensors can reduce energy waste by 39% and increase energy-saving up to 17% with a 20-minute time delay for breakrooms.
Private Office
Rayzeek motion sensor switches provide max flexibility for office use cases. Occurpnay, vacancy or manual mode, your office, your call.
Conference Room
Vacancy switch with manual override feature is perfect for conference rooms where it’s not frequently used and requires manual turn on and off for presentations.
Videos
Play Video
RZ021 All-In-One Motion Sensor Switch
Play Video
RZ021 User Guide
Play Video
RZ021 Programming Guide
Play Video
RZ021-G (No Neutral) – Installation Video
Play Video
RZ021-N (Neutral Required) – Installation Video
