DC Sensor Dimmer BS010B
BS010B
BS010B dimmable PIR motion sensor is a pyroelectric device that can detect human movement by detecting Infrared rays emitted by the human body. The operating voltage is 12/24VDC, and the output voltage is equal to the input voltage. The Dimmable PIR motion sensor can change the LED light brightness by pressing the button on the PCB. Widely used for 12V/24V DC constant voltage LED light, LED strips, and automatic sensory devices.
Not what you’re looking for? View our portfolio:
Consult an Expert

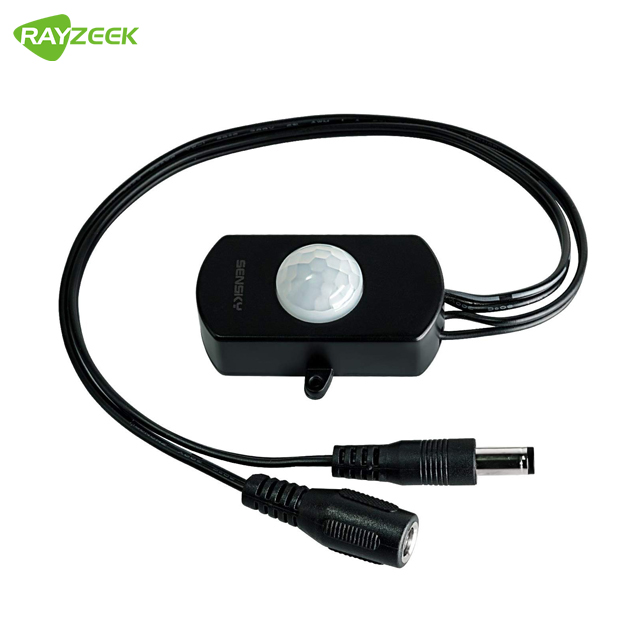

Motion Sensor Dimmer BS010B
BS010B dimmable PIR motion sensor is a pyroelectric device that can detect human movement by detecting Infrared rays emitted by the human body. The operating voltage is 12/24VDC, and the output voltage is equal to the input voltage.
The Dimmable PIR motion sensor can change the LED light brightness by pressing the button on the PCB. Widely used for 12V/24V DC constant voltage LED light, LED strips, and automatic sensory devices.
Features, Benefits, Specs
Features & Benefits
- Low voltage DC12V-24V, dimmable PIR motion sensor switch.
- Use fireproof material, high security.
- Easy to install and suitable for LED strips.
- Time delay adjustable.
- Energy saving performance and long operating life
- CE, RoHS, FCC approved
Specifications
- Features
-
Color
Black housing,White lens/White housing,White lens
Operating voltage
12/24 VDC (30VDC Max)
Output voltage
Equal to input voltage
Load current
≤ 3A
Static current
≤ 50 uA
Delay time
15S, 30S, 60S, 3Mins, 5Mins, 15Mins, 30mins
Dimmable
15%, 30%, 45%, 60%, 75%, 100%
Light sensor
ON(35Lux)/OFF mode

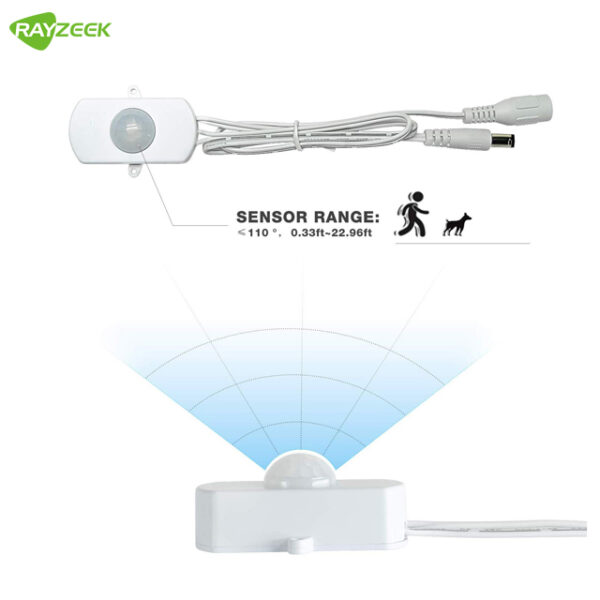

Detecting range
5-7 Meters, ≤ 110 degrees cone angle

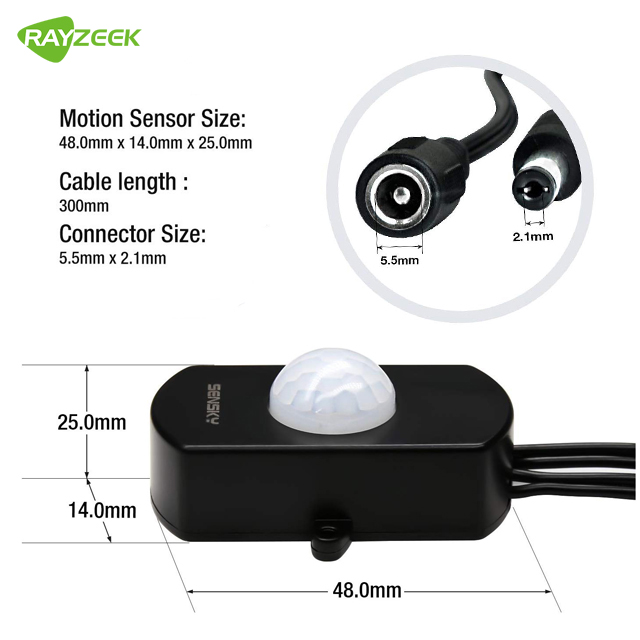

Size
48*25*14 mm
Expand Your Motion Sensors
View all our energy-saving products on motion sensors
