Occupancy / Vacancy / Manual Motion Sensor Switch, Neutral Required

RZ020-10A-N

$17.00

RZ020-10A-N motion sensor switch, 120~265V, 10A. Direct replacement for US 1-Gang wall switch. Neutral wire required. Advanced PIR motion sensor for accurate motion detection. Occupancy/Vacancy mode with Rayzeek’s exclusive manual ON/OFF mode.

Rayzeek’s manual ON/OFF mode allows users to keep the load always ON/OFF, just like a regular wall switch. By simply pressing a button on the panel, you can change from Occpuacny/Vacancy mode to manual mode and vice versa without losing any settings. This feature allows users to have permanent manual control of the load and override the motion detecting mode when in need.

This motion sensor light switch also allows users to temporarily turn ON/OFF the light without exiting the current detecting mode and allows 6 levels of time delay adjustment from 15 s to 30 mins and 3 levels of light sensor adjustment from OFF, 15 lux to 35 lux. RZ020-10A-N provides maximum flexibility and is competent for every home&commercial use case.

  • Sensor Modes: Occupancy, Vacancy and Manual modes.
  • Sensors: PIR motion sensor. Light sensor(photocell).
  • Features: Adjustable time delay and light sensor.
  • Wiring: Hot, live, neutral, ground wire.
  • Use Cases: Living rooms, bathrooms, offices. Anywhere a regular single pole light switch is used due to the ON/OFF mode.
Read more

Product highlights

  • Manual mode allows the switch to work exactly like a light switch
  • 120~265V line voltage, 10A current rating
  • Neutral Required.
  • Occupancy, vacancy, manual override 3-in-1
  • UL Listed

Quick delivery: 99% in stock

Full motion-activated product line

Inquire for bulk ODM/OEM orders

Motion Sensor Light Switch

It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.

The versatile RZ020 motion sensor switch is applicable for every residential and commercial application with occupancy, vacancy, and ON/OFF modes integrated for max compatibility, flexibility, and ease of use.

10 Minute Quick Installation

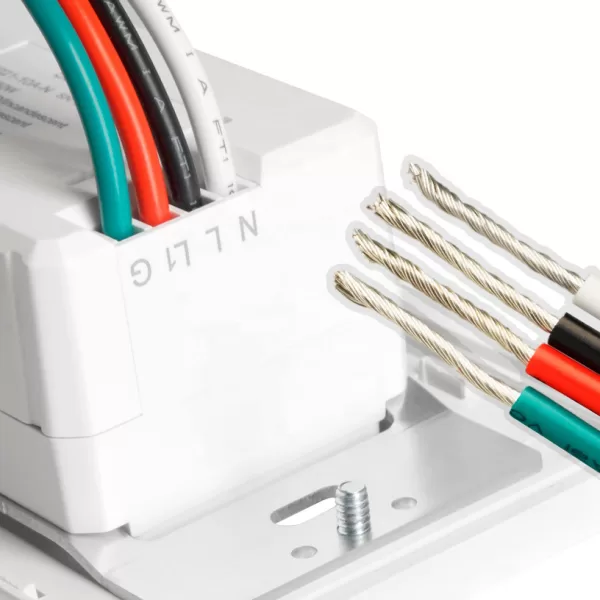

The RZ020-10A-N series is designed for the US markets for single-pole applications. The 120V-265V voltage range works well in homes and offices and the 10A current rating is competent for daily uses. RZ020-10A-N is a 4-wire switch and requires a neutral wire to work.

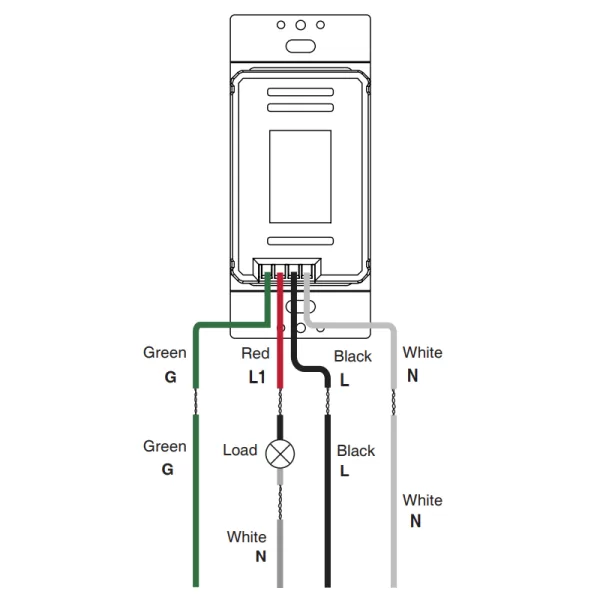

Wiring Diagram

The RZ020 motion sensor switch is hardwired and line-voltage powered. It requires a hot wire, load wire, and ground wire to function. The wiring is standard and the same as other switches.

  • Connect black L wire with the live wire from the source
  • Connect red L1 wire with the load wire to your light
  • Connect green G wire with the ground wire

*The hotwire and load wire are not interchangeable.

Exclusive ON/OFF Mode

One significant drawback after upgrading to motion-activated light switches is that you partially lose the ability to manually control your lights. It’s not possible to keep the lights ON like you’re used to with the good old wall switch.

The Best Of Both Worlds?

Rayzeek introduces the exclusive ON/OFF mode, allowing users to permanently keep the load ON or OFF the same as a standard light switch. It’s so convenient that users can seamlessly switch between detection mode and manual mode with only one tap.

Say goodbye to all these real-life headaches.

Pets Activate the Light at Night

Dogs and cats are active at night and might frequently trigger your motion light to turn on. That’s their nature. While most motion sensor switches do not have pet-immune features, false positives at night can be a real headache.

Select vacancy or OFF mode, especially in laundry rooms or the kitchen where your pets usually play around.

Take a Relaxing Long Bath

On average, people spend at least 8 minutes in the shower. When taking a relaxing bath at night, the light might unexpectedly turn off if the sensor can’t detect your presence in the bathing area. It can be an unpleasant experience that spoils the mood

Enter ON mode to keep the light always ON during the shower. Enjoy your hot and relaxing bath for as long as your like.

Lighting in Your Kids’ Bedroom

A vacancy sensor switch is used in bedrooms to reduce the electricity waste from the lighting left on by forgetful kids. Occupancy sensors aren’t suitable because they might activate the light at night, waking up kids, but it’s still handier in the daytime.

Now you can use occupancy sensor mode in your kid’s bedroom for the whole day. When it’s bedtime, touch the OFF button to keep the light off for the whole night.

Light False on in Empty Spaces

A fixed heat source(HVAC or hot wind) or even mirror reflection may send false positive IR signals that keep the light on when the space is unoccupied. Most of the time, it’s impossible to relocate the sensor’s position or the heat source as they’re fixed.

When the PIR sensor constantly detects signals and is falsely triggered, select OFF Mode to bypass motion detection

False off With People in the Room

Lights might falsely turn off if the sensor fails to detect the presence of people, e.g., the room is large, has obstacles blocking the IR signal, or fine motion activities such as reading or typing. It’s frustrating to repeatedly re-activate lights by moving your body.

When we need to permanently keep the light ON, enter ON mode by tapping the small button and exit without losing previous settings.

Features, Benefits, Specs

The ultimate energy-saving & lighting automation solution – switch from Auto ON/Auto OFF, Manal ON/Auto OFF, and Manal ON/Manual OFF operating mode for your multi-purpose rooms.

Features & Benefits

  • Occupancy, Vacancy, Manual ON/OFF mode 3 in 1
  • Exclusive ON/OFF mode allows the sensor switch to work the same as a standard light switch
  • Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins
  • Enable ambient light sensor to keep lights off when there is ample natural light
  • Low and high sensitivity adjustable
  • Adjust settings by tapping buttons without removing the switch plate
  • Magnetic latching relay provides better performance
  • Made of fire-resistant materials for your safety
  • RoHS, CE, FCC certified
Features

Sensor Mode

Vacancy mode, Occupancy mode, Manual ON/OFF mode

Time-Delay

15 s, 1 min (default), 3 mins, 5 mins, 15 mins, 30 mins

Light Sensor

Off, 15 Lux, 25 Lux (default), 35 Lux

Sensor Sensitivity

Low Sensitivity, High Sensitivity

Working Conditions

Power Source

120 VAC ~ 265 VAC

Power Frequency

50 / 60Hz

Installation Height

1.2 m ~ 1.6 m

Working Humidity

< 93%RH

Working Temperature

-20 ~ +40℃

Detection Capability

Detection Distance

7 m ~ 9 m (<27℃)

Detection Range

< 150°

Detection Speed

0.6 ~ 1.5m/s

Bulb Compatibility

Fluorescent / Ballast / LED

1000 W / 120 VAC, 1200 W / 265 VAC

Incandescent / Halogen

1000 W / 120 VAC

The Ideal Repalcement

The Rayzeek RZ020 motion sensor switch is the ideal motion-activated wall switch solution for the US market. It can fit in the US standard One-Gang switch box and replace your current light switch within minutes. The 120V-265V wide voltage range makes RZ020 applicable for home and commercial applications. Both “Neutral Required” and “No Neutral” versions are available for new installations and old house retrofit projects.

RZ020-10A-N

  • 10A Load: Ideal for high load applications, i,e, controlling multiple lights or HVAC
  • Neutral Required: Hot Wire, Load Wire, Neutral Wire, Ground Wire
us-box-l

US Standard Switch

RZ020 motion sensor switch fits in the “Single Gang” or “One Gang” electrical switch box and can replace standard light switches in the US market. Also suitable for countries using the US standard switch boxes:

  • United States
  • Canada
  • Argentina
  • Australia
  • Japan
  • Mexico
  • New Zealand
  • Central America

Versatile Applications

Rayzeek RZ020 motion sensor switch is the ultimate solution for automating your home lighting. It can act as an occupancy sensor, vacancy sensor, or a standard light switch to suit the diverse needs of every space. Simply upgrade all your light switches with RZ020 without a second thought because you can always change it to a manual ON/OFF switch when needed.

Bathroom

Occupancy sensor with light sensor enabled is the ideal mode for bathroom usage, especially when you need to use it at night. Manual ON mode can be suitable for long showers.

Garage

Walk in and out of your home garage without the need to reach the light switch with an occupancy sensor switch. Enable daylight sensing to save more energy in the daytime.

Laundry Room

Enjoy the automatic lighting turned on and off for you when arm-full with piles of laundry to wash or clean clothes to take away.

Kitchen

Place an occupancy sensor switch at the entrance and enjoy the automatic lighting while you’re busy cooking and preparing food for your family.

Hallway

Occupancy/vacancy sensor switches can reduce the hours of lighting used by approximately 53% on dark hallways in your basement.

Breakroom

Occupancy sensors can reduce energy waste by 39% and increase energy-saving up to 17% with a 20-minute time delay for breakrooms.

Private Office

Rayzeek motion sensor switches provide max flexibility for office use cases. Occurpnay, vacancy or manual mode, your office, your call.

Conference Room

Vacancy switch with manual override feature is perfect for conference rooms where it’s not frequently used and requires manual turn on and off for presentations.
