Kit: Controller + 2X Motion Sensor + Strip Light (WW)

RZ016A-2-RZ016W-Warm-White
$47.00

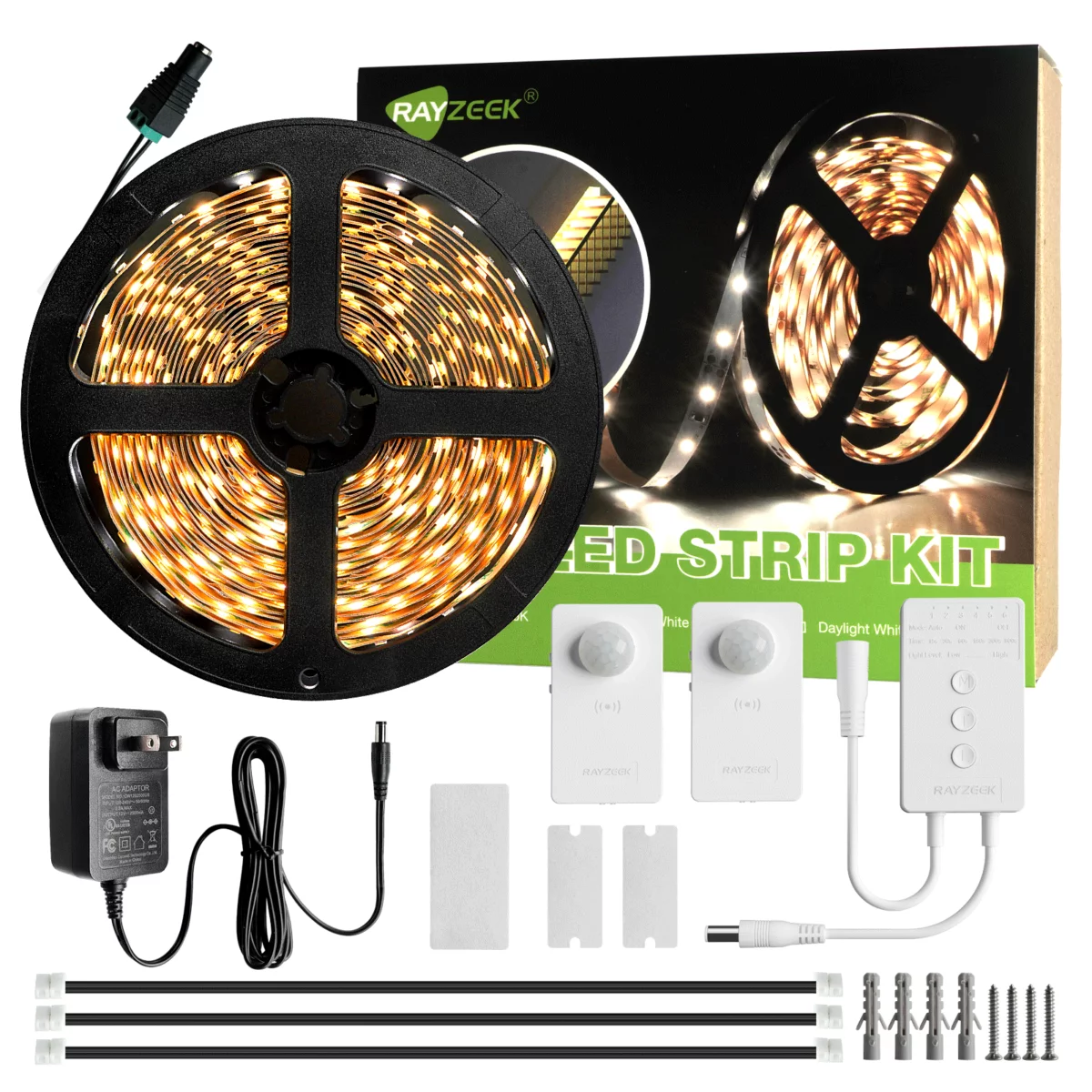

Motion-activated light strip kit: Warm white 19.7′ (6m) LED light strip with 1 X RZ016W main controller and 2 X RZ016A wireless motion sensors.

  • 【Wireless Motion Sensor】It only works with the controller and requires 2PCS AAA batteries. When it detects motion,it will give out a RF signal to the controller to turn on/off the load.Turn on the Light Sensor, and the sensor will only detect motion when the ambient brightness is lower than 35LUX to save energy.
  • 【Multi-function Controller】Auto/On/Off mode, Time-delay 15s-30s-60s-180s-300s-900s, Dimmable 20%-100%, the perfect design provides you with a variety of choices.
  • 【Cuttable/Expandable Strip Light】Wireless motion activated LED light strip with built-in 360 high-quality SMD2835 lamp beads/2520ml, 50000+ hours of long life. You can DIY cut it or extend it with the included 11.81-foot extension cord.
  • 【Reliable range and technology】The barrier-free detection range is 5-8 meters, and the wireless transmission range is 7-20 meters.The mature and reliable low-power wireless sensing technology brings more convenience to your life.
  • 【Safe to use, flexible application】UL Listed Power Adapter runs on DC12V-24V, which is safe for children and the elderly. You can place the wireless sensor anywhere, it is very suitable for stairs, living room, kitchen, etc.
Read more

Product highlights

  • Light strip: 19.7′ (6m), warm white, extendable
  • RZ016W: Plug-in dimmer with light sensor
  • 2*RZ016A: Wireless motion sensors

Quick delivery: 99% in stock

Full motion-activated product line

Inquire for bulk ODM/OEM orders

RZ016A Controller-Receiver

  • Input Voltage:DC 12~24V
  • Output Voltage: Equal to input voltage
  • Load Current: ≤5A
  • Static Power: ≤10uA
  • Mode: Auto/ON/OFF
  • Time Delay: 15s.30s. 60s.180s. 300s. 900s. Adjustable
  • Light Level: 20%~ 100% Adjustable

RZ016W Motion Sensor-Emitter

  • Input Voltage: 2pcs AAA batteries powered(Not include)
  • Output Voltage: Equal to input voltage
  • Mode: 1. Sensor ON/OFF
  • 2. Light Sensor ON(≤35Lux)/OFF
  • Detect range: 5~8 Meters
  • Wireless transmission range: 7-20 Meters
  • (7M when batteries voltage is lower than 2.5V)

UL Power Adapter

  • Input: 100-240VAC 50/60HZ
  • Power: 30W
  • Output: 12VDC 2.5A
  • Connect the maximum length of the LED strip: 6.5M

LED strip Light

  • Length of Strip Light: 6m/roll
  • Rated Power: 4.8W/m
  • Input Voltage: DC 12V
  • LED Type: SMD 3528
  • High brightness LED: 6-7lm/LED
  • Waterproof grade: Non-Waterproof

Features, Benefits, Specs

Features & Benefits

  • This kit comes with a Wireless PIR Motion Sensor and a RF Controller. Automatically turn on/off the LED strip light when motion is detected. It eliminates the need for any wiring, making installation effortless.
  • Time-delay 15s-30s-60s-180s-300s-900s. Adjust the brightness of the lights to suit your preference or mood:20%-40%-60%-80%-90%-100%.
  • Flexible with Auto/On/Off mode. Turn on the light sensor so that the sensor detects motion only when the ambient brightness is ≤35 LUX to save energy and bill. Turn off the light sensor,detect motion all the time in daytime or night;led strip will be Auto on.
  • The kit uses a UL Listed Power Adapter. Safe for children and the elderly;Safe for stairs, hallway, bedroom, cabinet, closet, living room…It has a strong RF wireless transmission range with a detection range of 7-20 meters.
  • We are committed to resolving any problems or concerns our customers encounter and offer a one year warranty, feel free to contact us via email and we will be at your service within 24 hours.(note: controller requires 2PCS AAA batteries,which are not included.)

Specifications

RZ016A

Name

Controller-Receiver

Input Voltage

DC 12~24V

Output Voltage

Equal to input voltage

Load current

≤ 5A

Static power

≤ 10 uA

Mode

Auto/ON/OFF

Time Delay

15s, 30s, 60s, 180s, 300s, 900s Adjustable

Light Level

20%~100% Adjustable

RZ016W

Name

Motion Sensor-Emitter

Input Voltage

2pcs AAA batteries powered

Output Voltage

Equal to input voltage

Mode

1. Sensor ON/OFF, 2. Light Sensor ON(≤35lux)/OFF

Detect range

5~8 Meters

Wireless transmission range

7-20 Meters (7M when batteries voltage is lower than 2.5V)
